84W15L01300
| Manufacturer | |
| Mfr. Part # | 84W15L01300 |
| EBEE Part # | 9699001-84W15L01300-EB |
| Customer # | |
| EDA Models | |

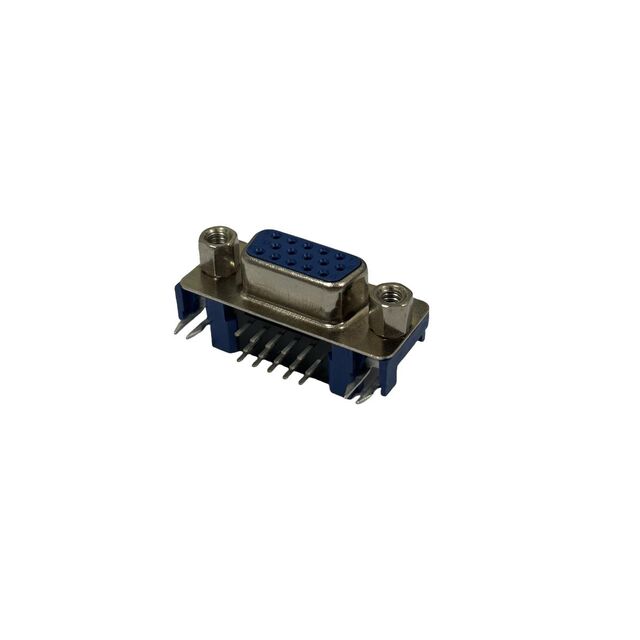

| Description | CONN D-SUB HD RCPT 15P R/A SLDR |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 10+ | $0.8770 | $ 8.7700 |
| 20+ | $0.8420 | $ 16.8400 |
| 50+ | $0.8188 | $ 40.9400 |
| 100+ | $0.7840 | $ 78.4000 |
| 200+ | $0.7262 | $ 145.2400 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors, Interconnects ,D-Sub, D-Shaped Connectors ,D-Sub Connector | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 15 | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Operating Temperature | -55°C ~ 105°C | |
| Ingress Protection | - | |
| Primary Material | Metal | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Board Lock | |
| Mfr | DLK Electronics | |
| Contact Material | Copper Alloy | |
| Wire Gauge | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 1.00µin (0.025µm) | |
| Current Rating (Amps) | 1A | |
| Termination | Solder | |
| Color | Blue | |
| Number of Rows | 3 | |
| Voltage Rating | 36V | |
| Connector Style | D-Sub, High Density | |
| Shell Size, Connector Layout | 1 (DE, E) High Density | |
| Flange Feature | Mating Side, Female Screwlock (4-40) | |
| Shell Material, Finish | Metal, Nickel Plated | |
| Backset Spacing | 0.118" (3.00mm) | |
| Contact Form | - | |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
Description
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
