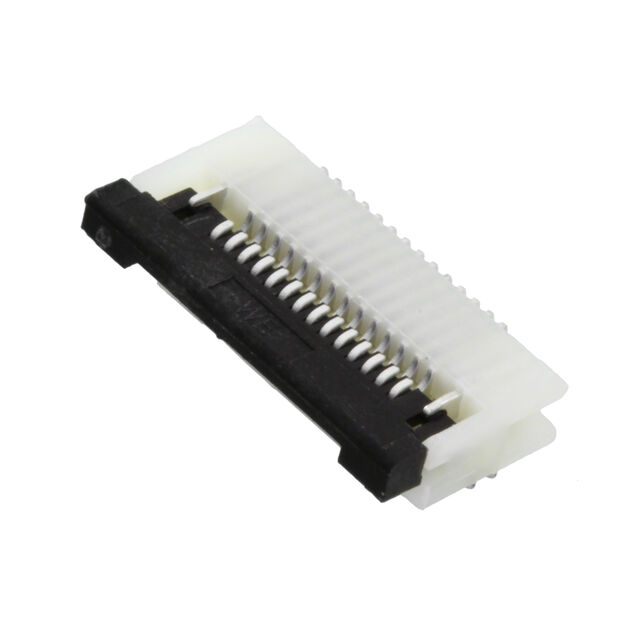

Images are for reference only
Add to Favourites
687114149022
| Manufacturer | |
| Mfr. Part # | 687114149022 |
| EBEE Part # | 9774487-687114149022-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN FFC BOTTOM 14POS 0.5MM R/A |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.0800 | $ 1.0800 |
| 50+ | $1.0224 | $ 51.1200 |
| 100+ | $0.9504 | $ 95.0400 |
| 500+ | $0.8766 | $ 438.3000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | Würth Elektronik 687114149022 | |
| Series | WR-FPC | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Number of Positions | 14 | |
| Mounting Type | Surface Mount, Right Angle | |
| Operating Temperature | -40°C ~ 105°C | |
| Housing Color | Ivory | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Solder Retention, Zero Insertion Force (ZIF) | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 120.0µin (3.05µm) | |
| Mating Cycles | 20 | |
| Current Rating (Amps) | 0.5A | |
| Termination | Solder | |
| Pitch | 0.020" (0.50mm) | |
| Flat Flex Type | FFC, FPC | |
| FFC, FCB Thickness | 0.30mm | |
| Locking Feature | Flip Lock | |
| Voltage Rating | 50V | |
| Housing Material | Polyamide (PA6T), Nylon 6T | |
| Connector/Contact Type | Contacts, Bottom | |
| Height Above Board | 0.087" (2.20mm) | |
| Cable End Type | Straight | |
| Actuator Material | Polyamide (PA6T), Nylon 6T | |
| Actuator Color | Black |
Description
14 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
