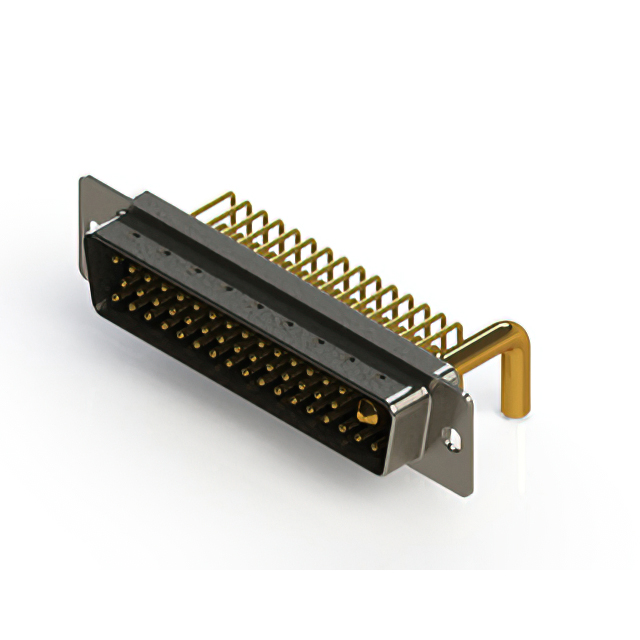

Name: 629-47W1650-4N1
Brand: EDAC Inc.
SKU: 9744846-629-47W1650-4N1-EB
Price: 32.58752 USD
Availability: OutOfStock

Language:

English
العربية
Deutsch(German)
Español(Spanish)
Türkçe (Turkish)
Português(Portuguese)
한국어(Korean)
日本語(Japanese)
Italiano(Italian)
Français (French)

Manufacturer	EDAC Inc.
Mfr. Part #	629-47W1650-4N1
EBEE Part #	9744846-629-47W1650-4N1-EB
Customer #
Datasheet	EDAC Inc. 629-47W1650-4N1
EDA Models
Description	CONN D-SUB PLUG 47POS R/A SOLDER

Type	Description	Select All
Category	Connectors ,D-Sub / VGA Connectors
Datasheet	EDAC Inc. 629-47W1650-4N1
Series	629-C
Packaging	Tray
Part Status	Active
Connector Type	Plug, Male Pins
Number of Positions	47 (46 + 1 Power)
Contact Type	Signal and Power
Mounting Type	Through Hole, Right Angle
Operating Temperature	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Features	Grounding Indents, Shielded
Base Product Number	629-47W
Mfr	EDAC Inc.
Contact Material	Copper Alloy
Wire Gauge	-
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Current Rating (Amps)	5A, 40A
Termination	Solder
Color	Black
Number of Rows	3
Voltage Rating	125V
Connector Style	D-Sub, Combo
Shell Size, Connector Layout	5 (DD, D) - 47W1
Flange Feature	Housing/Shell (Unthreaded)
Shell Material, Finish	Steel, Nickel Plated
Backset Spacing	0.370" (9.40mm)
Contact Form	-
Dielectric Material	Polyester Thermoplastic
