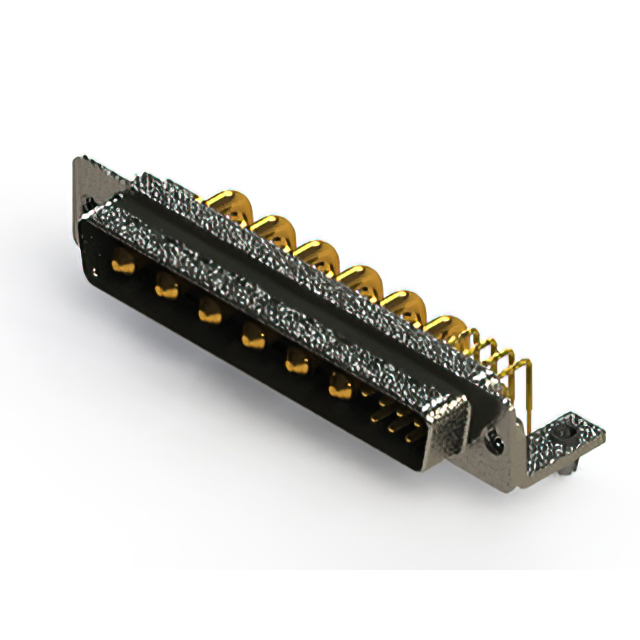

Name: 629-13W6640-2NB
Brand: EDAC Inc.
SKU: 9744841-629-13W6640-2NB-EB
Price: 32.54464 USD
Availability: OutOfStock

Language:

English
العربية
Deutsch(German)
Español(Spanish)
Türkçe (Turkish)
Português(Portuguese)
한국어(Korean)
日本語(Japanese)
Italiano(Italian)
Français (French)

Manufacturer	EDAC Inc.
Mfr. Part #	629-13W6640-2NB
EBEE Part #	9744841-629-13W6640-2NB-EB
Customer #
Datasheet	EDAC Inc. 629-13W6640-2NB
EDA Models
Description	CONN D-SUB PLUG 13POS R/A SOLDER

Type	Description	Select All
Category	Connectors ,D-Sub / VGA Connectors
Datasheet	EDAC Inc. 629-13W6640-2NB
Series	629-C
Packaging	Tray
Part Status	Active
Connector Type	Plug, Male Pins
Number of Positions	13 (7 + 6 Power)
Contact Type	Signal and Power
Mounting Type	Through Hole, Right Angle
Operating Temperature	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Features	Board Lock, Grounding Indents, Mounting Brackets
Base Product Number	629-13W
Mfr	EDAC Inc.
Contact Material	Copper Alloy
Wire Gauge	-
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Current Rating (Amps)	5A, 20A
Termination	Solder
Color	Black
Number of Rows	2
Voltage Rating	125V
Connector Style	D-Sub, Combo
Shell Size, Connector Layout	4 (DC, C) - 13W6
Flange Feature	Housing/Shell (M3)
Shell Material, Finish	Steel, Nickel Plated
Backset Spacing	0.370" (9.40mm)
Contact Form	-
Dielectric Material	Polyester Thermoplastic
