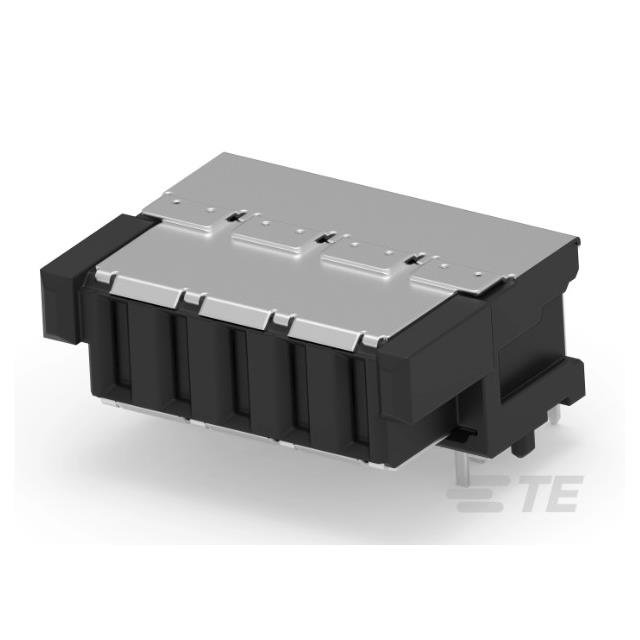

Images are for reference only
Add to Favourites
394570-E
| Manufacturer | |
| Mfr. Part # | 394570-E |
| EBEE Part # | 10260702-394570-E-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | 5-PIN, RIGHT ANGLE, THR |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $10.2400 | $ 10.2400 |
| 10+ | $8.7030 | $ 87.0300 |
| 25+ | $8.1580 | $ 203.9500 |
| 50+ | $7.7686 | $ 388.4300 |
| 100+ | $7.6840 | $ 768.4000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors, Interconnects ,Rectangular Connectors ,Common Rectangular | |
| Datasheet | TE Connectivity Erni 394570-E | |
| Series | MICROSPEED | |
| Packaging | Box | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Number of Positions | 5 | |
| Contact Type | Female Blade Socket | |
| Mounting Type | Through Hole, Right Angle | |
| Fastening Type | Push-Pull | |
| Operating Temperature | -55°C ~ 125°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Board Guide | |
| Contact Shape | Rectangular | |
| Mfr | TE Connectivity Erni | |
| Contact Finish - Mating | Gold | |
| Contact Material | Copper Alloy | |
| Applications | - | |
| Current Rating (Amps) | 18A | |
| Termination | Solder | |
| Style | Board to Board | |
| Number of Rows | 1 | |
| Voltage Rating | - | |
| Pitch - Mating | 0.079" (2.00mm) | |
| Row Spacing - Mating | - | |
| Number of Positions Loaded | All | |
| Contact Length - Post | 0.047" (1.20mm) | |
| Insulation Height | 0.207" (5.25mm) | |
| Contact Finish Thickness - Mating | - | |
| Contact Finish - Post | Tin | |
| Insulation Material | Liquid Crystal Polymer (LCP) | |
| Insulation Color | Black | |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) | |
| Mated Stacking Heights | - |
Description
5 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
