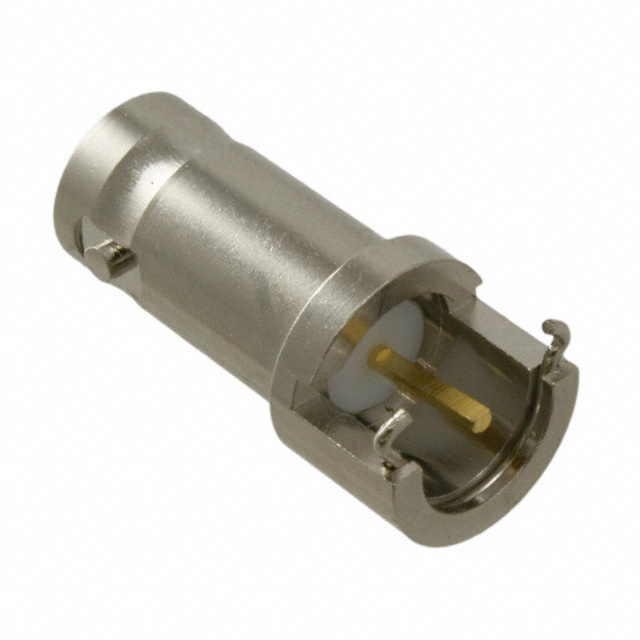

361V704ER
| Manufacturer | |
| Mfr. Part # | 361V704ER |
| EBEE Part # | 9629579-361V704ER-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN BNC JACK STR 75OHM EDGE MNT |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Coaxial Connectors (RF) | |
| Datasheet | Winchester Interconnect 361V704ER | |
| Series | V-Bite® | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Jack, Female Socket | |
| Mounting Type | Board Edge, End Launch | |
| Mounting Feature | - | |
| Fastening Type | Bayonet Lock | |
| Operating Temperature | -65°C ~ 165°C | |
| Housing Color | Silver | |
| Ingress Protection | Weatherproof | |
| Features | - | |
| Base Product Number | 361V704 | |
| Includes | - | |
| Mfr | Winchester Interconnect | |
| Cable Group | - | |
| Contact Termination | Solder | |
| Impedance | 75 Ohms | |
| Mating Cycles | 500 | |
| Voltage Rating | 500 V | |
| Connector Style | BNC | |
| Body Material | Brass | |
| Body Finish | Nickel | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Frequency - Max | 1 GHz | |
| Center Contact Material | Brass | |
| Center Contact Plating | Gold | |
| Insertion Loss | 0.2dB | |
| Shield Termination | Solder | |
| Number of Ports | 1 |
Description
BNC Connector Jack, Female Socket 75 Ohms Board Edge, End Launch Solder
