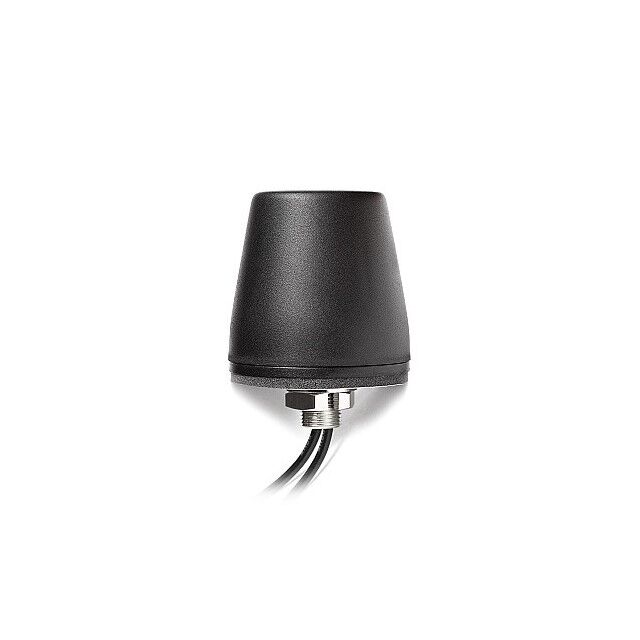

Name: 2J7684BGF
Brand: 2J Antennas
SKU: 12303546-2J7684BGF-EB
Price: 46.31 USD
Availability: OutOfStock

Language:

Manufacturer	2J Antennas
Mfr. Part #	2J7684BGF
EBEE Part #	12303546-2J7684BGF-EB
Customer #
Datasheet	2J Antennas 2J7684BGF
EDA Models
Description	MINI-SHAKER 2IN1 5GNR/4G/3G/2G G

Qty.	Unit Price	Ext. Price
1+	$46.3100	$ 46.3100
10+	$34.7410	$ 347.4100
25+	$33.4376	$ 835.9400

Type	Description	Select All
Category	RF and Wireless ,Antennas
Datasheet	2J Antennas 2J7684BGF
Series	-
Packaging	Bag
Part Status	Active
Mounting Type	Screw Mount
Ingress Protection	IP67, IP69
Grade	-
Qualification	-
Features	Cable - 3m, Filter
Applications	2G, 3G, 4G, 5G, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR
Termination	SMA Male
Height (Max)	2.000" (50.80mm)
Return Loss	-15dB, -14.9dB, -11dB, -10.1dB, -9.6dB
Frequency Range	617MHz ~ 960MHz, 1.427GHz ~ 1.606GHz, 1.598GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
Gain	2.9dBi, 28dBi, 28dBi, 2.1dBi, 0.5dBi, -1dBi
RF Family/Standard	Cellular
Frequency Group	Wide Band
Frequency (Center/Band)	788.5MHz, 1.575GHz, 1.602GHz, 2.058GHz, 4.15GHz, 5.537GHz
Antenna Type	Dome
Number of Bands	6
VSWR	1.4, 1.5, 2, 2.1, 2.3
Power - Max	25 W
