2EDGK-5.0-03P-14-1000Z(H)
| Manufacturer | |
| Mfr. Part # | 2EDGK-5.0-03P-14-1000Z(H) |
| EBEE Part # | 12371197-2EDGK-5.0-03P-14-1000Z(H)-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |

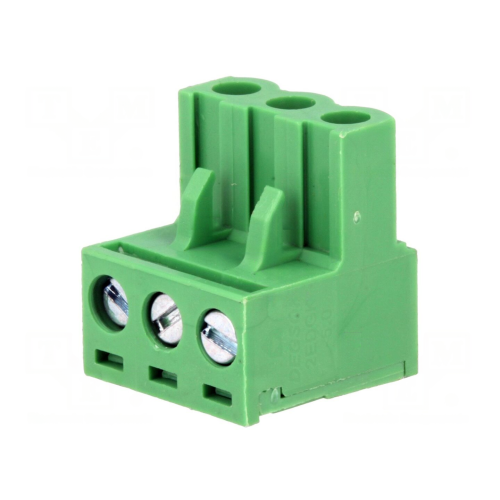

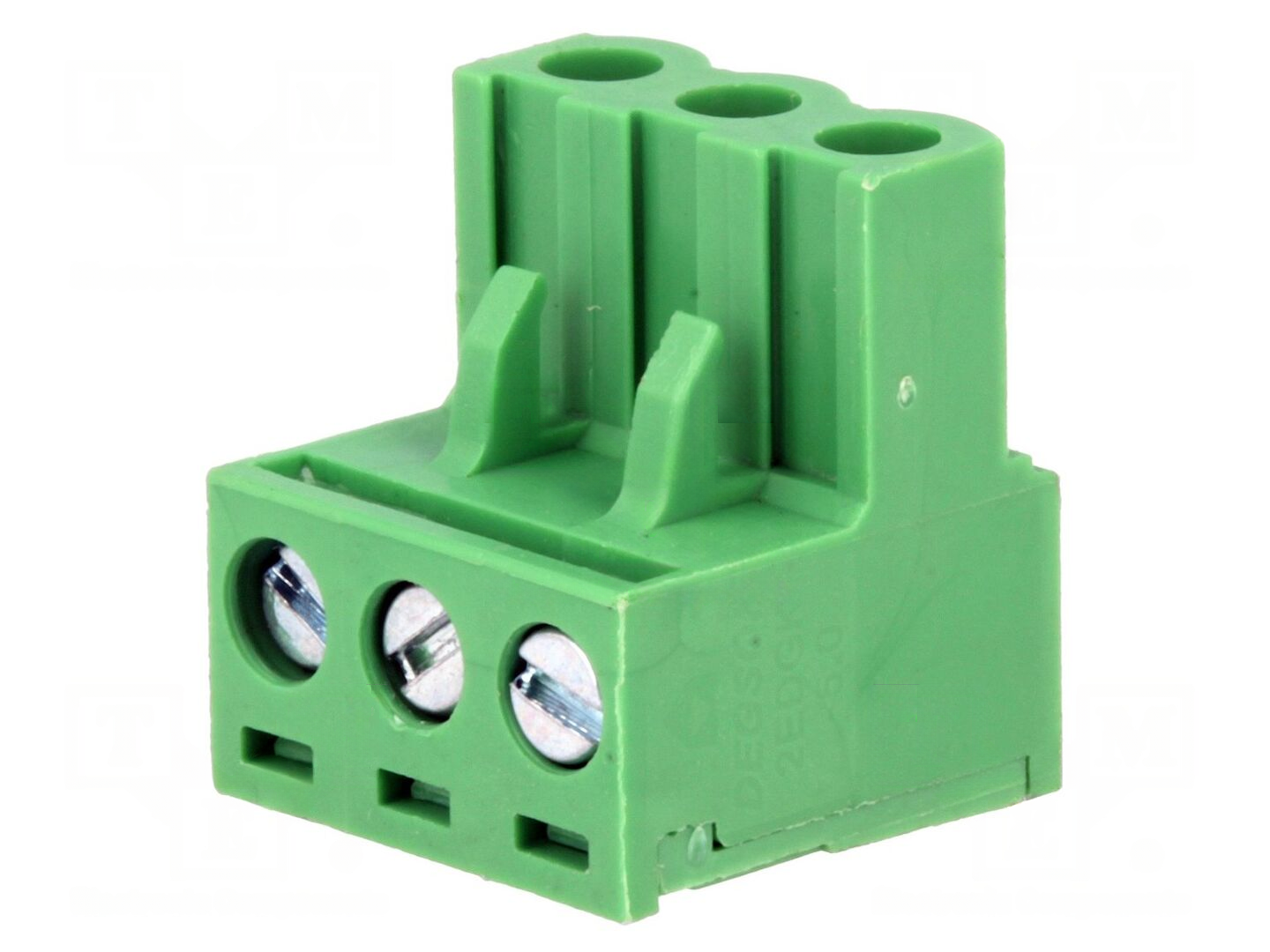

| Description | Connector: pluggable terminal block; plug; female; 20A; 320V; 1x3 |
This materials supports customized cables!
Learn more >>16128 In Stock for Fast Shipping
16128 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: pcsFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 5+ | $0.7040 | $ 3.5200 |
| 50+ | $0.6030 | $ 30.1500 |
| 200+ | $0.5010 | $ 100.2000 |
| 800+ | $0.4600 | $ 368.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Terminals | |
| Datasheet | DEGSON 2EDGK-5.0-03P-14-1000Z(H) | |
| Operating temperature | -40...105°C | |
| Rated voltage | 320V | |
| Conform to the norm | CE | |
| Conform to the norm | UL | |
| Conform to the norm | VDE | |
| Type of connector | pluggable terminal block | |
| Connector | plug | |
| Kind of connector | female | |
| Spatial orientation | straight | |
| Electrical mounting | cage clamp | |
| Electrical mounting | screw terminal | |
| Contacts pitch | 5mm | |
| Connector pinout layout | 1x3 | |
| Mechanical mounting | for cable | |
| Current rating | 20A | |
| Locking system | latch | |
| Colour | green | |
| Body material | polyamide 66 | |
| Flammability rating | UL94V-0 | |
| Contact material | phosphor bronze | |
| Wire cross-section | 2.5mm<sup>2</sup> | |
| Number of ways | 3 | |
| Wire size | 28AWG...12AWG | |
| Number of terminals | 3 |
Description
Connector: pluggable terminal block; plug; female; 20A; 320V; 1x3
