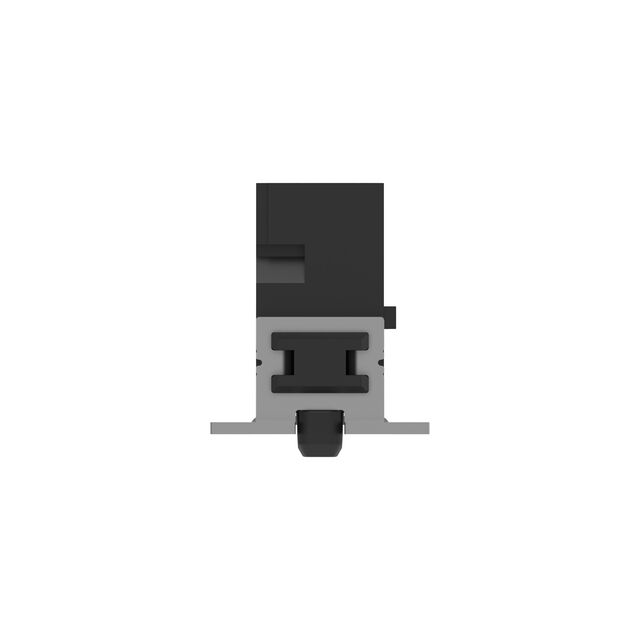

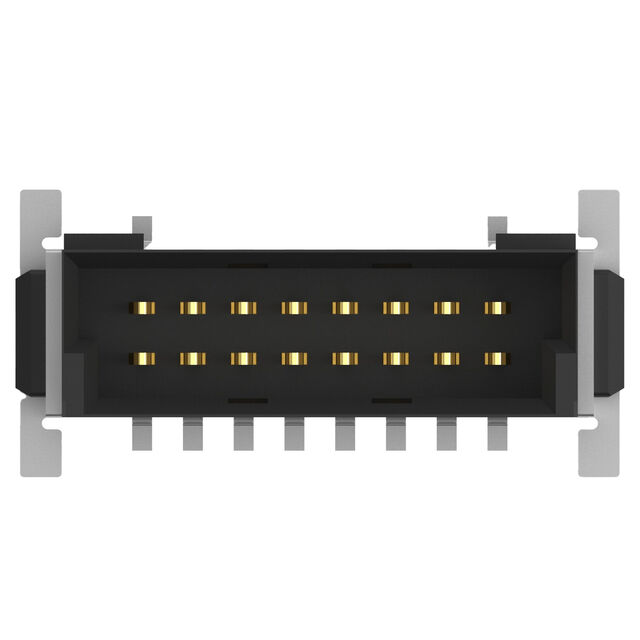

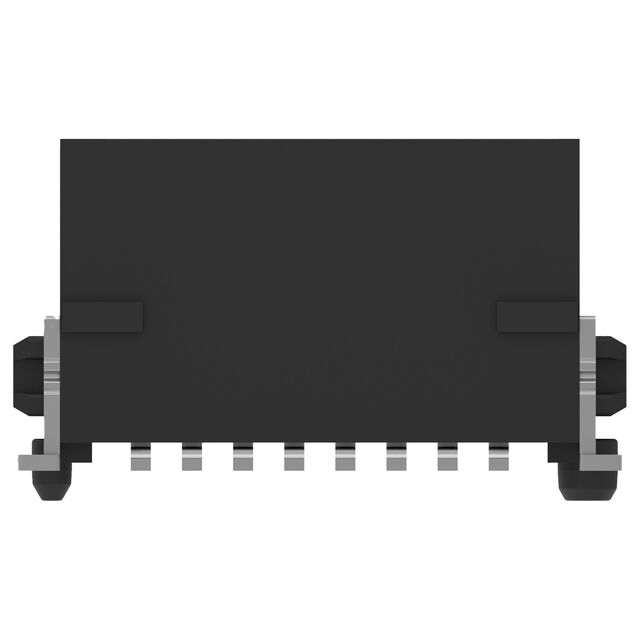

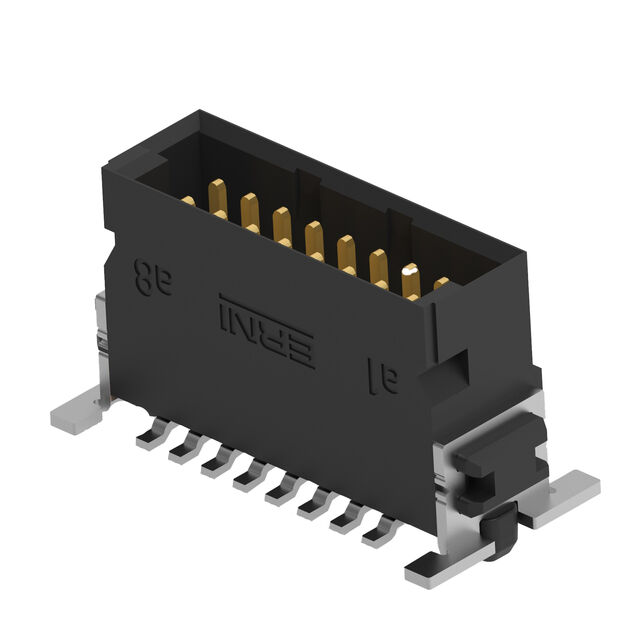

254536-E
| Manufacturer | |
| Mfr. Part # | 254536-E |
| EBEE Part # | 11601344-254536-E-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | 16-PIN, VERTICAL, SMT |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.8700 | $ 2.8700 |
| 10+ | $2.4390 | $ 24.3900 |
| 100+ | $2.0724 | $ 207.2400 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors, Interconnects ,Rectangular Connectors ,Common Rectangular | |
| Datasheet | TE Connectivity Erni 254536-E | |
| Series | SMC | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Connector Type | Header | |
| Number of Positions | 16 | |
| Contact Type | Male Pin | |
| Mounting Type | Surface Mount | |
| Fastening Type | Latch Holder | |
| Operating Temperature | -55°C ~ 125°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Board Guide, Pick and Place, Solder Retention | |
| Contact Shape | Square | |
| Base Product Number | - | |
| Mfr | TE Connectivity Erni | |
| Contact Finish - Mating | Gold | |
| Contact Material | Copper Alloy | |
| Applications | - | |
| Current Rating (Amps) | 1.7A per Contact | |
| Termination | Solder | |
| Style | Board to Cable/Wire | |
| Number of Rows | 2 | |
| Voltage Rating | - | |
| Pitch - Mating | 0.050" (1.27mm) | |
| Row Spacing - Mating | 0.050" (1.27mm) | |
| Number of Positions Loaded | All | |
| Shrouding | Shrouded - 4 Wall | |
| Contact Length - Mating | 0.157" (4.00mm) | |
| Contact Length - Post | - | |
| Overall Contact Length | - | |
| Insulation Height | 0.325" (8.25mm) | |
| Contact Finish Thickness - Mating | - | |
| Contact Finish - Post | Tin | |
| Insulation Material | Liquid Crystal Polymer (LCP) | |
| Insulation Color | Black | |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) | |
| Mated Stacking Heights | - |
Description
Connector Header Surface Mount 16 position 0.050" (1.27mm)
