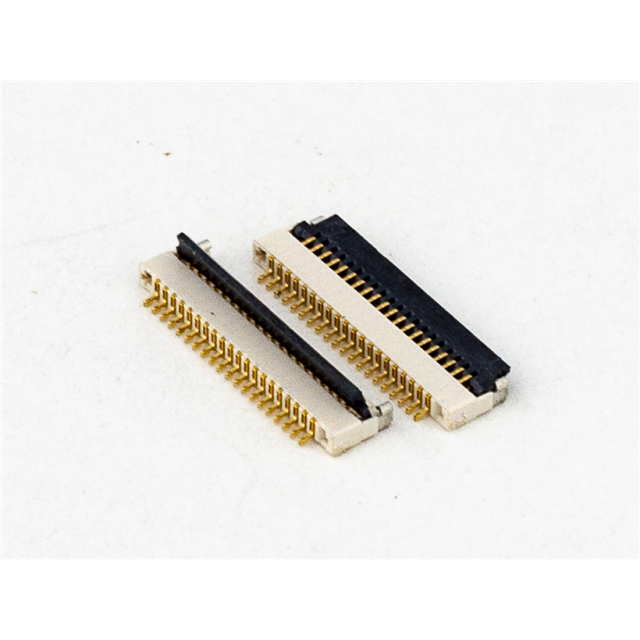

2538-B10G00DBT
| Manufacturer | |
| Mfr. Part # | 2538-B10G00DBT |
| EBEE Part # | 9767508-2538-B10G00DBT-EB |
| Customer # | |
| EDA Models | |
| Description | CONN FFC FPC 10POS 0.5MM R/A |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.5500 | $ 0.5500 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Series | 2538-B | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Positions | 10 | |
| Mounting Type | Surface Mount, Right Angle | |
| Operating Temperature | -55°C ~ 105°C | |
| Housing Color | White | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Solder Retention | |
| Base Product Number | 2538-B | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Mating Cycles | 20 | |
| Current Rating (Amps) | 0.5A | |
| Termination | Solder | |
| Pitch | 0.020" (0.50mm) | |
| Flat Flex Type | FFC, FPC | |
| FFC, FCB Thickness | 0.30mm | |
| Locking Feature | Flip Lock, Backlock | |
| Voltage Rating | - | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Connector/Contact Type | Contacts, Top and Bottom | |
| Height Above Board | 0.039" (1.00mm) | |
| Cable End Type | Tapered | |
| Actuator Material | Liquid Crystal Polymer (LCP) | |
| Actuator Color | Black |
Description
10 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
