244692-E
| Manufacturer | |
| Mfr. Part # | 244692-E |
| EBEE Part # | 11605001-244692-E-EB |
| Customer # | |
| EDA Models | |

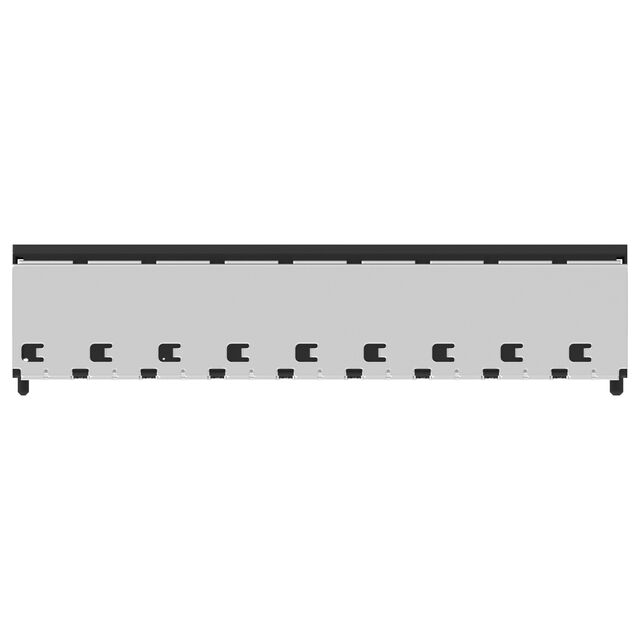

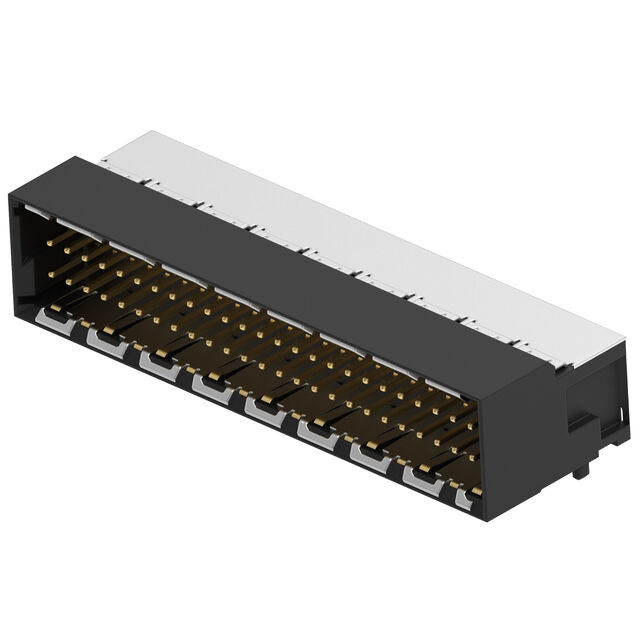

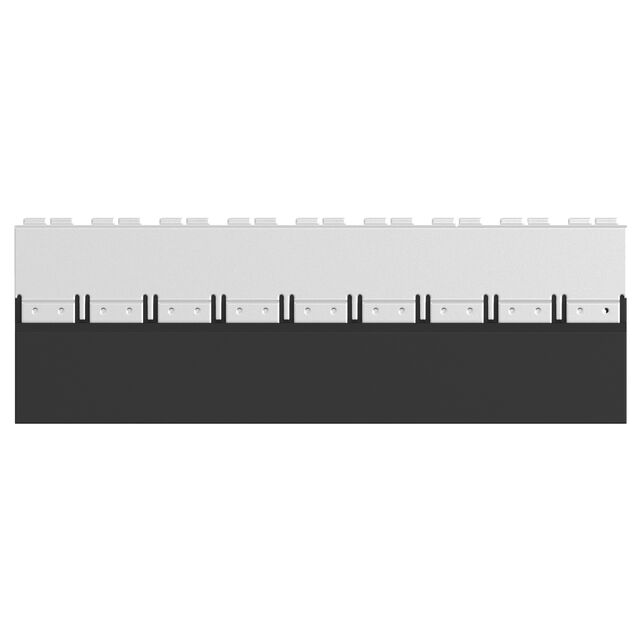

| Description | 50-PIN, RIGHT ANGLE, SMT |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $13.5000 | $ 13.5000 |
| 10+ | $11.0000 | $ 110.0000 |
| 100+ | $8.9687 | $ 896.8700 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors, Interconnects ,Rectangular Connectors ,Common Rectangular | |
| Series | MICROSPEED | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Connector Type | Header | |
| Number of Positions | 50 | |
| Contact Type | Male Pin | |
| Mounting Type | Surface Mount, Right Angle | |
| Fastening Type | Latch Holder | |
| Operating Temperature | -55°C ~ 125°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Board Guide | |
| Contact Shape | Square | |
| Base Product Number | - | |
| Mfr | TE Connectivity Erni | |
| Contact Finish - Mating | Gold | |
| Contact Material | Copper Alloy | |
| Applications | - | |
| Current Rating (Amps) | 1A | |
| Termination | Solder | |
| Style | Board to Cable/Wire | |
| Number of Rows | 2 | |
| Voltage Rating | - | |
| Pitch - Mating | 0.039" (1.00mm) | |
| Row Spacing - Mating | 0.059" (1.50mm) | |
| Number of Positions Loaded | All | |
| Shrouding | Shrouded - 4 Wall | |
| Contact Length - Mating | 0.114" (2.90mm) | |
| Contact Length - Post | - | |
| Overall Contact Length | - | |
| Insulation Height | 0.230" (5.85mm) | |
| Contact Finish Thickness - Mating | - | |
| Contact Finish - Post | Tin | |
| Insulation Material | Liquid Crystal Polymer (LCP) | |
| Insulation Color | Black | |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | |
| Mated Stacking Heights | - |
Description
Connector Header Surface Mount, Right Angle 50 position 0.039" (1.00mm)
