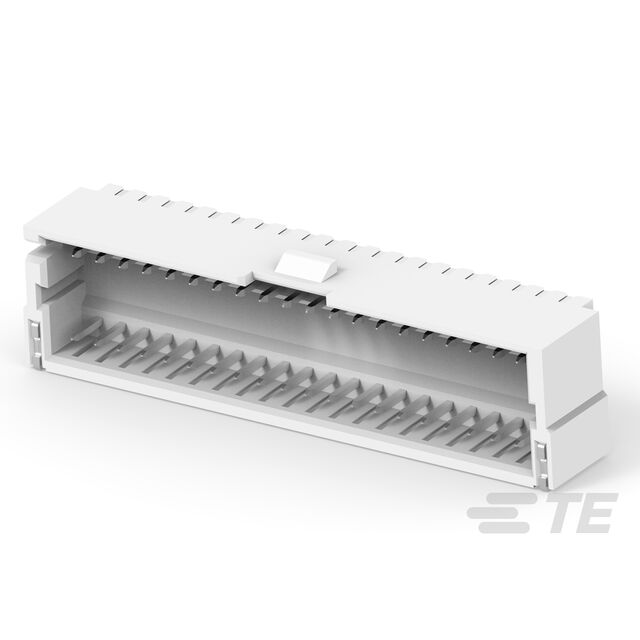

2394521-4
| Manufacturer | |
| Mfr. Part # | 2394521-4 |
| EBEE Part # | 7726689-2394521-4-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | 1.5P RIGHT ANGLE DUAL-ROW LOCKIN |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.9100 | $ 2.9100 |
| 10+ | $2.3730 | $ 23.7300 |
| 100+ | $1.9344 | $ 193.4400 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Rectangular Connectors | |
| Datasheet | TE Connectivity Linx 2394521-4 | |
| Series | High Performance Interconnect (HPI) | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Connector Type | Header | |
| Number of Positions | 40 | |
| Contact Type | Male Pin | |
| Mounting Type | Surface Mount, Right Angle | |
| Fastening Type | Locking Ramp | |
| Operating Temperature | -40°C ~ 105°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | - | |
| Contact Shape | Square | |
| Mfr | TE Connectivity Linx | |
| Contact Finish - Mating | Tin | |
| Contact Material | Copper Alloy | |
| Applications | - | |
| Current Rating (Amps) | Varies by Wire Gauge | |
| Termination | Solder | |
| Style | Board to Cable/Wire | |
| Number of Rows | 2 | |
| Voltage Rating | 50VAC | |
| Pitch - Mating | 0.059" (1.50mm) | |
| Row Spacing - Mating | 0.185" (4.70mm) | |
| Number of Positions Loaded | All | |
| Shrouding | Shrouded - 4 Wall | |
| Contact Length - Mating | - | |
| Contact Length - Post | - | |
| Overall Contact Length | - | |
| Insulation Height | 0.362" (9.20mm) | |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | |
| Contact Finish - Post | Tin | |
| Insulation Material | Thermoplastic | |
| Insulation Color | Natural | |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | |
| Mated Stacking Heights | - |
Description
Connector Header Surface Mount, Right Angle 40 position 0.059" (1.50mm)
