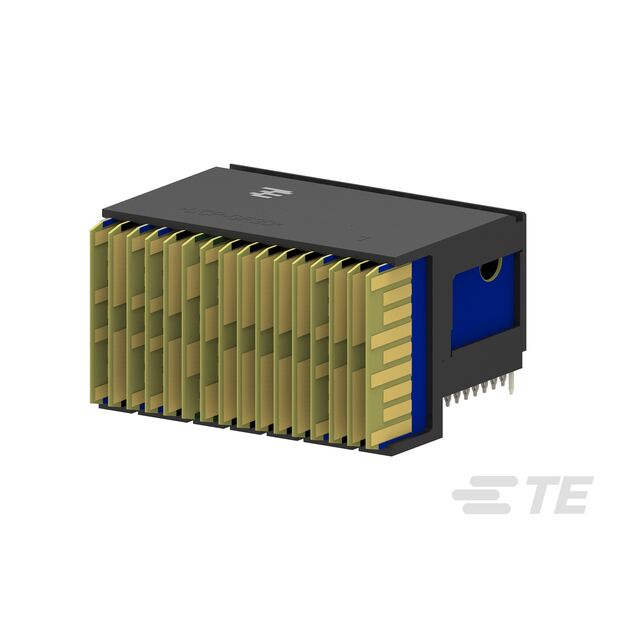

Images are for reference only
Add to Favourites
2286120-1
| Manufacturer | |
| Mfr. Part # | 2286120-1 |
| EBEE Part # | 10731811-2286120-1-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | MULTIGIG RT2-R,DC, SPACE VPX- MO |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $142.9100 | $ 142.9100 |
| 17+ | $117.0235 | $ 1989.3995 |
| 34+ | $111.4450 | $ 3789.1300 |
| 51+ | $108.3065 | $ 5523.6315 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Board-to-Board and Backplane Connector | |
| Datasheet | TE Connectivity Aerospace, Defense and Marine 2286120-1 | |
| Series | MULTIGIG RT2-R | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Type | Plug, Male Blades | |
| Number of Positions | 112 | |
| Mounting Type | Board Edge, Through Hole, Right Angle | |
| Operating Temperature | -55°C ~ 105°C | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Board Guide | |
| Base Product Number | 2286120 | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50.0µin (1.27µm) | |
| Current Rating (Amps) | 1.5A | |
| Termination | Solder | |
| Pitch | 0.071" (1.80mm) | |
| Color | Black | |
| Number of Rows | 7 | |
| Voltage Rating | 166VAC/DC | |
| Number of Positions Loaded | All | |
| Connector Usage | Daughtercard | |
| Connector Style | VITA 78 | |
| Number of Columns | 16 | |
| Contact Layout, Typical | 4 Signal Pairs, 26 Single Signal, 18 Power Groups, 15 Ground, 9 Open |
Description
112 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 78
