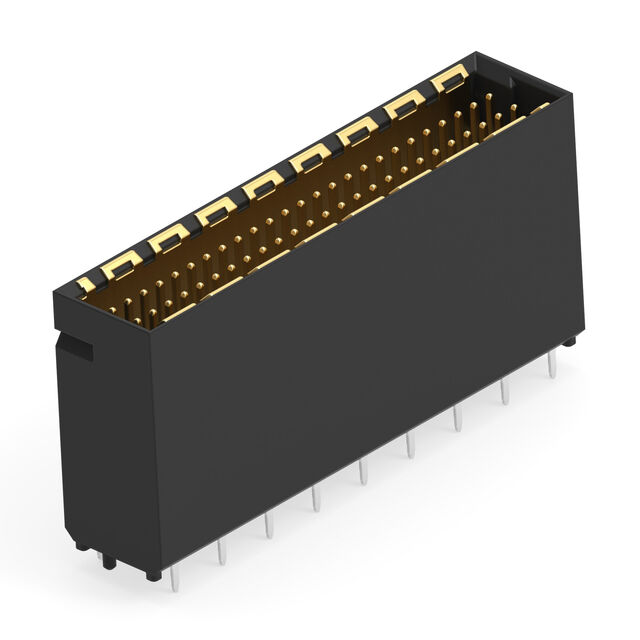

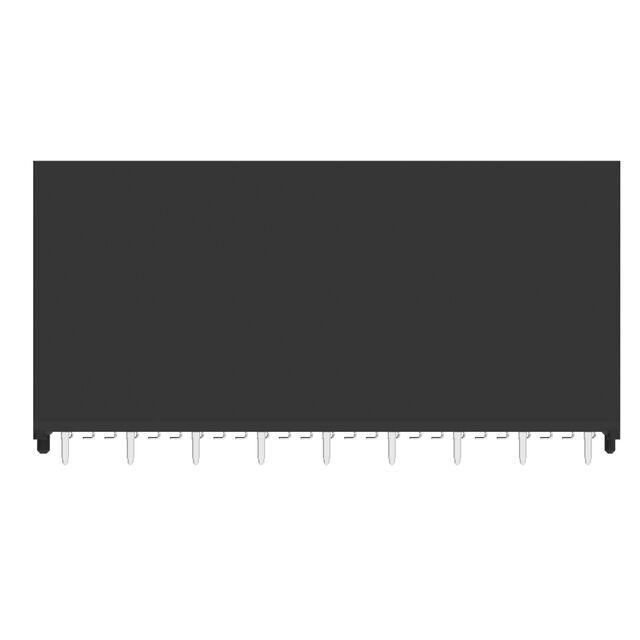

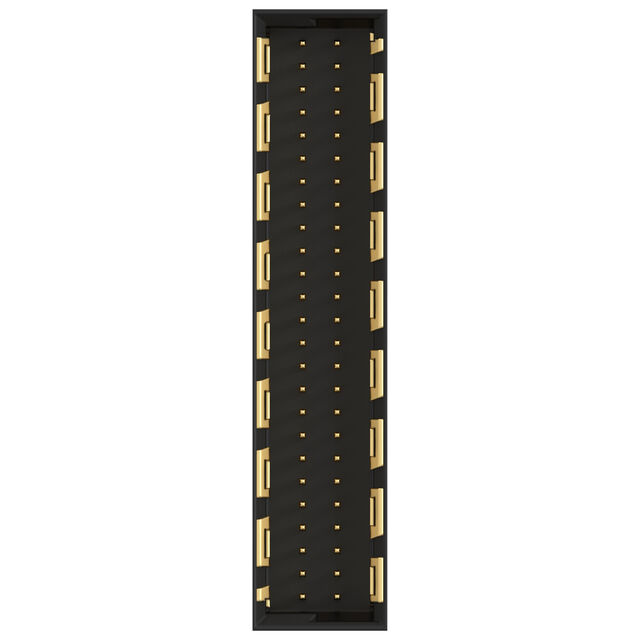

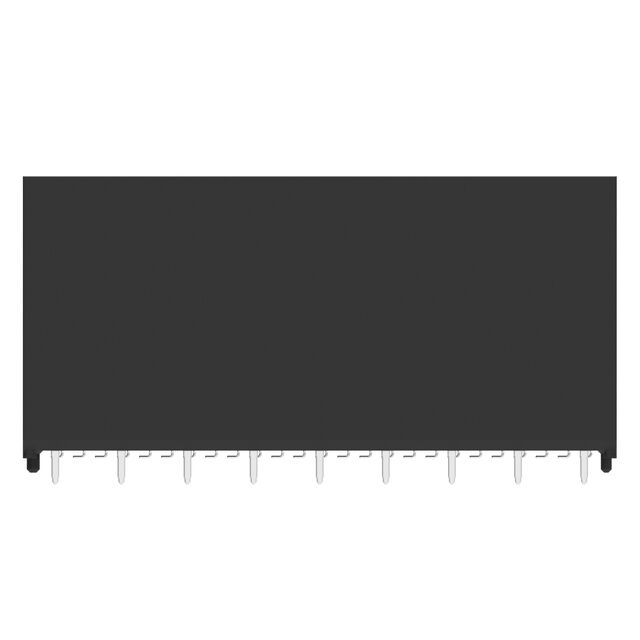

Images are for reference only
Add to Favourites
224560-E
| Manufacturer | |
| Mfr. Part # | 224560-E |
| EBEE Part # | 11625153-224560-E-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | 50-PIN, VERTICAL, SMT/THR |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 170+ | $8.7975 | $ 1495.5750 |
| 340+ | $8.3780 | $ 2848.5200 |
| 510+ | $8.1419 | $ 4152.3690 |
| 850+ | $7.8541 | $ 6675.9850 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors, Interconnects ,Rectangular Connectors ,Common Rectangular | |
| Datasheet | TE Connectivity Erni 224560-E | |
| Series | MICROSPEED | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Connector Type | Header | |
| Number of Positions | 50 | |
| Contact Type | Male Pin | |
| Mounting Type | Surface Mount, Through Hole | |
| Fastening Type | Latch Holder | |
| Operating Temperature | -55°C ~ 125°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Board Guide, Pick and Place | |
| Contact Shape | Square | |
| Base Product Number | - | |
| Mfr | TE Connectivity Erni | |
| Contact Finish - Mating | Gold | |
| Contact Material | Copper Alloy | |
| Applications | - | |
| Current Rating (Amps) | 1A | |
| Termination | Solder | |
| Style | Board to Cable/Wire | |
| Number of Rows | 2 | |
| Voltage Rating | - | |
| Pitch - Mating | 0.039" (1.00mm) | |
| Row Spacing - Mating | 0.059" (1.50mm) | |
| Number of Positions Loaded | All | |
| Shrouding | Shrouded - 4 Wall | |
| Contact Length - Mating | 0.114" (2.90mm) | |
| Contact Length - Post | 0.047" (1.20mm) | |
| Overall Contact Length | - | |
| Insulation Height | 0.504" (12.80mm) | |
| Contact Finish Thickness - Mating | - | |
| Contact Finish - Post | Tin | |
| Insulation Material | Liquid Crystal Polymer (LCP) | |
| Insulation Color | Black | |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) | |
| Mated Stacking Heights | - |
Description
Connector Header Surface Mount, Through Hole 50 position 0.039" (1.00mm)
