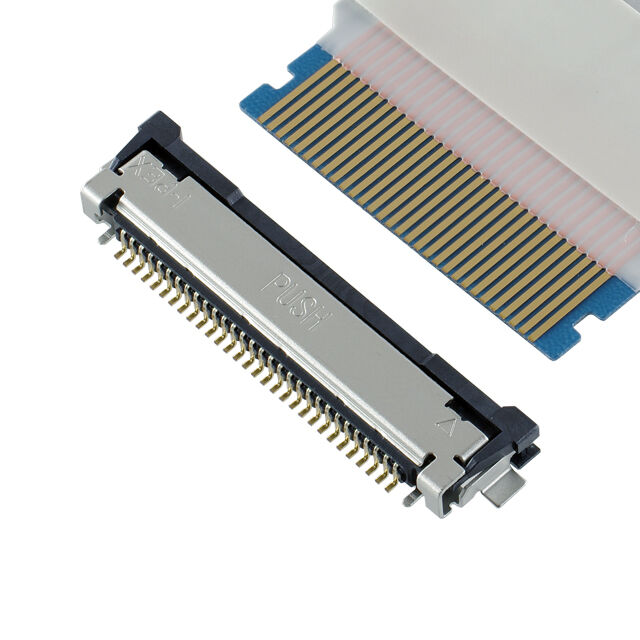

Images are for reference only
Add to Favourites
20720-024E-02
| Manufacturer | |
| Mfr. Part # | 20720-024E-02 |
| EBEE Part # | 9767337-20720-024E-02-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN FFC 24POS 0.5MM SMD R/A |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors, Interconnects ,FFC, FPC (Flat Flexible) Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | I-PEX 20720-024E-02 | |
| Series | EVAFLEX®xa05-VS | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Number of Positions | 24 | |
| Mounting Type | Surface Mount, Right Angle | |
| Operating Temperature | -40°C ~ 105°C | |
| Housing Color | Black | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Solder Retention | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 1.25µin (0.03µm) | |
| Mating Cycles | 30 | |
| Current Rating (Amps) | 0.3A | |
| Termination | Solder | |
| Pitch | 0.020" (0.50mm) | |
| Flat Flex Type | FFC | |
| FFC, FCB Thickness | 0.33mm | |
| Locking Feature | Auto Lock | |
| Voltage Rating | 200V | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Connector/Contact Type | Contacts, Top and Bottom | |
| Height Above Board | 0.075" (1.90mm) | |
| Cable End Type | Notched | |
| Actuator Material | Phosphor Bronze | |
| Actuator Color | - |
Description
24 Position FFC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
