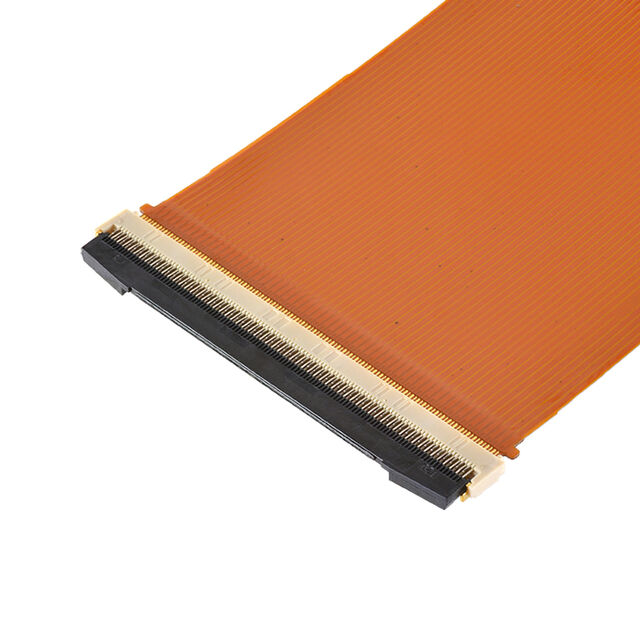

20617-080E-01
| Manufacturer | |
| Mfr. Part # | 20617-080E-01 |
| EBEE Part # | 9767357-20617-080E-01-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN FFC 80POS 0.4MM SMD R/A |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $7.2500 | $ 7.2500 |
| 10+ | $5.9080 | $ 59.0800 |
| 25+ | $5.4464 | $ 136.1600 |
| 50+ | $5.1216 | $ 256.0800 |
| 100+ | $4.8164 | $ 481.6400 |
| 250+ | $4.4407 | $ 1110.1750 |
| 500+ | $4.1763 | $ 2088.1500 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors, Interconnects ,FFC, FPC (Flat Flexible) Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | I-PEX 20617-080E-01 | |
| Series | MINIFLEX® 2-BF | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Number of Positions | 80 | |
| Mounting Type | Surface Mount, Right Angle | |
| Operating Temperature | -40°C ~ 85°C | |
| Housing Color | Beige | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Solder Retention | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 1.25µin (0.03µm) | |
| Mating Cycles | 20 | |
| Current Rating (Amps) | 0.2A | |
| Termination | Solder | |
| Pitch | 0.016" (0.40mm) | |
| Flat Flex Type | FFC, FPC | |
| FFC, FCB Thickness | 0.20mm | |
| Locking Feature | Flip Lock | |
| Voltage Rating | 50V | |
| Housing Material | Liquid Crystal Polymer (LCP) | |
| Connector/Contact Type | Contacts, Top and Bottom | |
| Height Above Board | 0.035" (0.88mm) | |
| Cable End Type | Notched, Tapered | |
| Actuator Material | Liquid Crystal Polymer (LCP) | |
| Actuator Color | Black |
Description
80 Position FFC, FPC Connector Contacts, Top and Bottom 0.016" (0.40mm) Surface Mount, Right Angle
