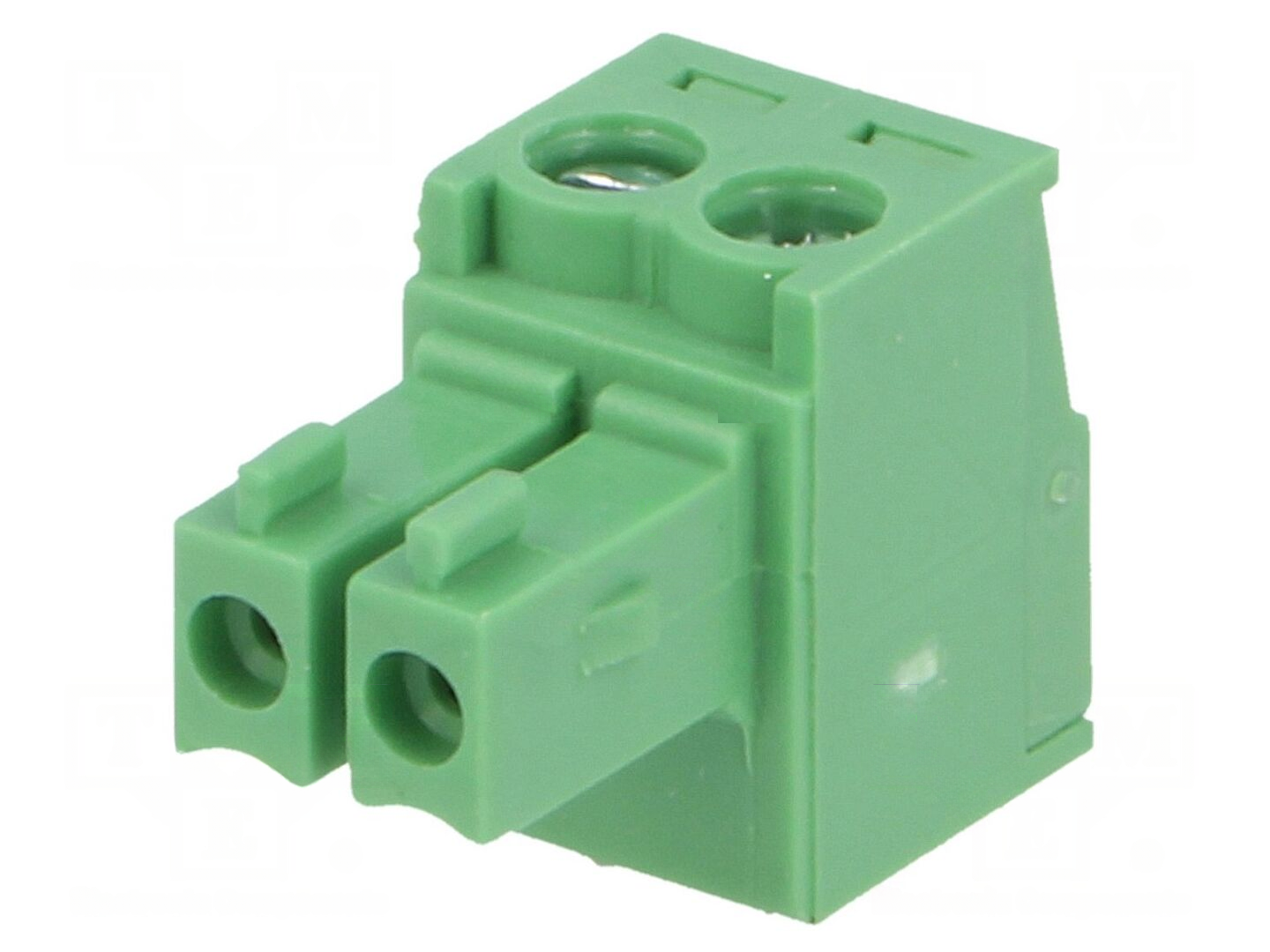

15EDGK-3.5-02P-14-00AH
| Manufacturer | |
| Mfr. Part # | 15EDGK-3.5-02P-14-00AH |
| EBEE Part # | 12370549-15EDGK-3.5-02P-14-00AH-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | Connector: pluggable terminal block; plug; female; 7A; 250V; green |
This materials supports customized cables!
Learn more >>33765 In Stock for Fast Shipping
33765 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: pcsFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 2+ | $0.4900 | $ 0.9800 |
| 20+ | $0.3680 | $ 7.3600 |
| 100+ | $0.3240 | $ 32.4000 |
| 600+ | $0.2940 | $ 176.4000 |
| 2000+ | $0.2650 | $ 530.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Terminals | |
| Datasheet | DEGSON 15EDGK-3.5-02P-14-00AH | |
| Operating temperature | -40...105°C | |
| Rated voltage | 250V | |
| Conform to the norm | CE | |
| Conform to the norm | UL | |
| Conform to the norm | VDE | |
| Type of connector | pluggable terminal block | |
| Connector | plug | |
| Kind of connector | female | |
| Spatial orientation | straight | |
| Electrical mounting | cage clamp | |
| Electrical mounting | screw terminal | |
| Contacts pitch | 3.5mm | |
| Connector pinout layout | 1x2 | |
| Mechanical mounting | for cable | |
| Current rating | 7A | |
| Locking system | friction lock | |
| Colour | green | |
| Body material | polyamide 66 | |
| Flammability rating | UL94V-0 | |
| Contact material | phosphor bronze | |
| Wire cross-section | 0.5...1.5mm<sup>2</sup> | |
| Number of ways | 2 | |
| Wire size | 28AWG...16AWG | |
| Number of terminals | 2 |
Description
Connector: pluggable terminal block; plug; female; 7A; 250V; green
