0878330631
| Manufacturer | |
| Mfr. Part # | 0878330631 |
| EBEE Part # | 11629402-0878330631-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN HEADER R/A 6POS 2MM |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.3700 | $ 1.3700 |
| 62+ | $1.0215 | $ 63.3330 |
| 124+ | $0.9727 | $ 120.6148 |
| 558+ | $0.8747 | $ 488.0826 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Rectangular Connectors | |
| Datasheet | MOLEX 0878330631 | |
| Series | Milli-Grid 87833 | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Type | Header | |
| Number of Positions | 6 | |
| Contact Type | Male Pin | |
| Mounting Type | Through Hole, Right Angle | |
| Fastening Type | Latch Holder | |
| Operating Temperature | -55°C ~ 105°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | - | |
| Contact Shape | Square | |
| Base Product Number | 087833 | |
| Mfr | Molex | |
| Contact Finish - Mating | Gold | |
| Contact Material | Phosphor Bronze | |
| Applications | Automotive, General Purpose, Telecommunications | |
| Current Rating (Amps) | - | |
| Termination | Solder | |
| Style | Board to Board or Cable | |
| Number of Rows | 2 | |
| Voltage Rating | - | |
| Pitch - Mating | 0.079" (2.00mm) | |
| Row Spacing - Mating | 0.079" (2.00mm) | |
| Number of Positions Loaded | All | |
| Shrouding | Shrouded - 4 Wall | |
| Contact Length - Mating | 0.141" (3.60mm) | |
| Contact Length - Post | 0.085" (2.16mm) | |
| Overall Contact Length | - | |
| Insulation Height | 0.248" (6.30mm) | |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | |
| Contact Finish - Post | Tin | |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | |
| Insulation Color | Black | |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | |
| Mated Stacking Heights | - |
Description

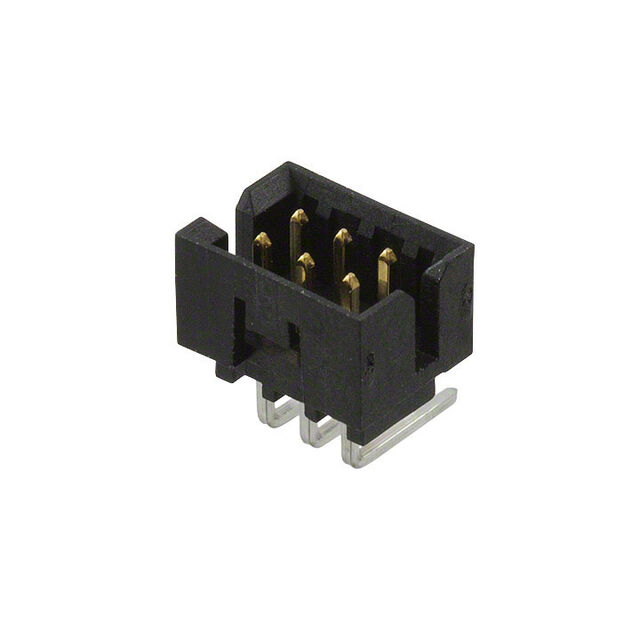

Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm)
