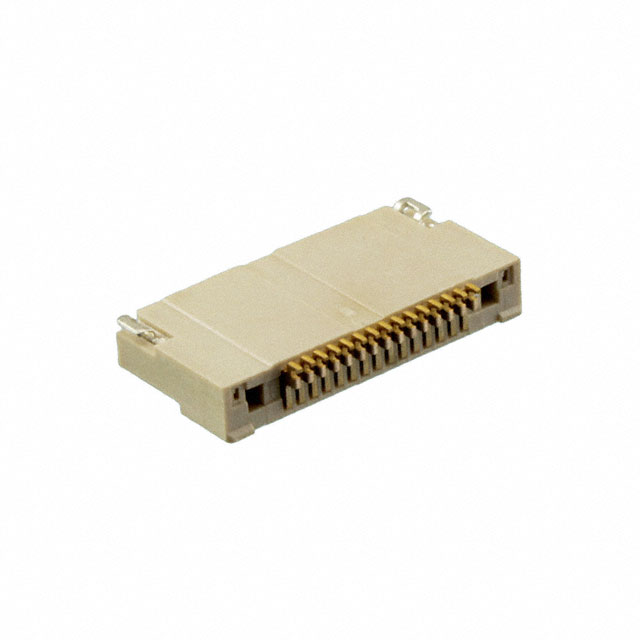

Images are for reference only
Add to Favourites
046288015000846+
| Manufacturer | |
| Mfr. Part # | 046288015000846+ |
| EBEE Part # | 9774509-046288015000846+-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN FFC BOTTOM 15POS 0.5MM R/A |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.1400 | $ 1.1400 |
| 10+ | $0.9700 | $ 9.7000 |
| 25+ | $0.9092 | $ 22.7300 |
| 50+ | $0.8658 | $ 43.2900 |
| 100+ | $0.8244 | $ 82.4400 |
| 250+ | $0.7727 | $ 193.1750 |
| 500+ | $0.7358 | $ 367.9000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | Kyocera AVX 046288015000846+ | |
| Series | 6288, Kyocera | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Number of Positions | 15 | |
| Mounting Type | Surface Mount, Right Angle | |
| Operating Temperature | -40°C ~ 105°C | |
| Housing Color | - | |
| Material Flammability Rating | - | |
| Features | Solder Retention, Zero Insertion Force (ZIF) | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.94µin (0.10µm) | |
| Mating Cycles | - | |
| Current Rating (Amps) | 0.4A | |
| Termination | Solder | |
| Pitch | 0.020" (0.50mm) | |
| Flat Flex Type | FFC, FPC | |
| FFC, FCB Thickness | 0.30mm | |
| Locking Feature | Flip Lock | |
| Voltage Rating | 50V | |
| Housing Material | Plastic | |
| Connector/Contact Type | Contacts, Bottom | |
| Height Above Board | 0.079" (2.00mm) | |
| Cable End Type | Tabbed | |
| Actuator Material | - | |
| Actuator Color | - |
Description
15 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
