XIAO ESP32S3 & Wio-SX1262 Kit with 3D case for Meshtastic & LoRa

• High RF performance: Supports LoRa (862 - 930MHz), 2.4GHz Wi - Fi, and BLE 5.0 dual - wireless communication. When connected to an external antenna, it enables remote communication over a distance of 2~5km (LoRa) and 100m + (Wi - Fi / BLE).
• LoRaWAN Hub: Pre-flashed with Single channel LoRaWAN, it is ready to work once powered on.

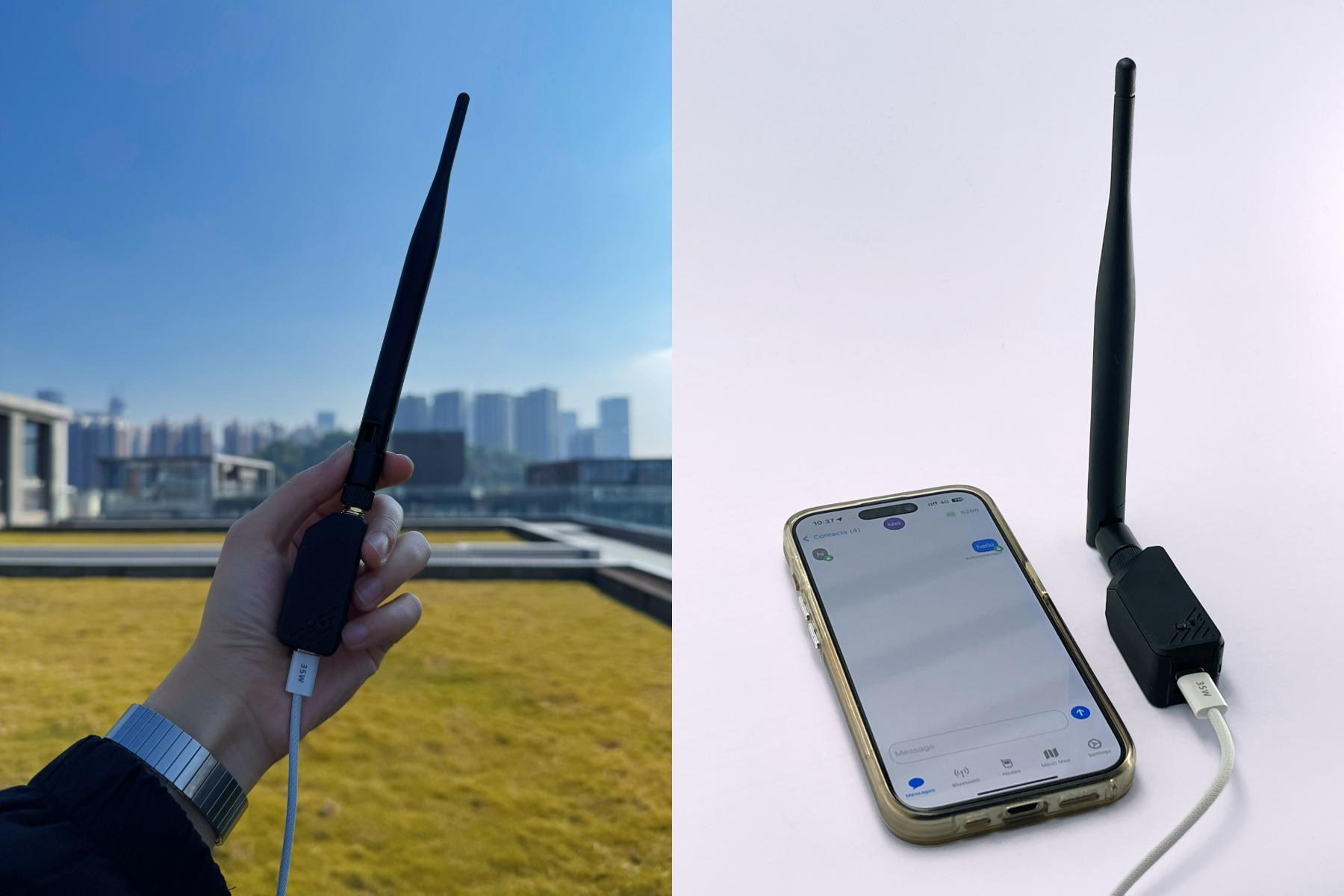

• 3D casing Design: Measuring 22x23x57mm, this device features a black ABS material with an extensive temperature range (- 40℃ ~ 100℃), making it ideal for outdoor and space - constrained projects.

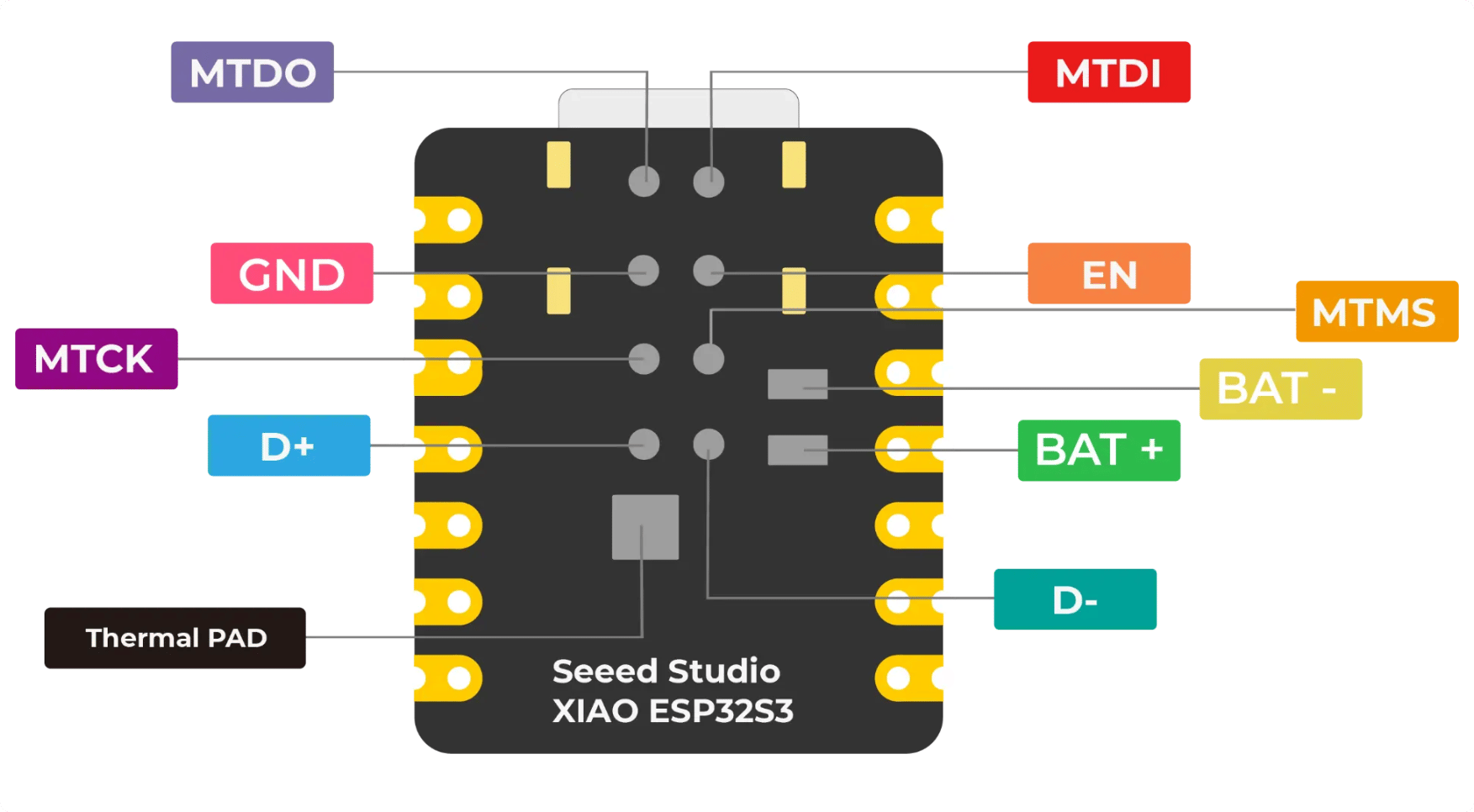

• Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported.
• Elaborate Power Design: Includes a Type-C USB interface, multiple GPIO/I2C/UART interface and lithium battery charge management.
• Versatile Hardware for Multiple Applications: Can be developed into a node or router for Meshtastic, a device for Single Channel LoRaWAN Gateway, or a LoRa & LoRaWAN sensor.

• LoRaWAN Single Channel Gateway:

The most cost-effective single-channel LoRaWAN gateway for connecting multiple LoRaWAN sensors and transmitting data to LoRaWAN Network Servers such as The Things Network and Chirpstack.

• LoRa/LoRaWAN Sensor:

A mini LoRaWAN sensor, ideal for beginners exploring LoRa/LoRaWAN. It can be used with the XIAO extension board and Grove sensors for rapid prototyping.

• Meshtastic Node&Router:

What is Meshtastic?

Meshtastic is an open-source wireless communication project designed to create a mesh network system using low-power LoRa devices. This allows devices to communicate flexibly and cost-effectively without relying on traditional mobile networks or Wi-Fi. It's suitable for use in various extreme environments and outdoor activities.

If you're interested in Meshtastic, you can explore it by following the firmware flashing tutorial.
