SenseCAP Indicator for Meshtastic® & LoRa®
| Produttore | |
| Codice Parte Mfr. | 114993532 |
| Codice Parte EBEE | 114993532-EB |
| Numero Cliente | |
| Modelli EDA | |
| Descrizione | It is a 4-inch touchscreen device designed for Meshtastic®, powered by dual MCUs, the ESP32 and RP2040, and supports Wi-Fi, BLE, and LoRa®. It is an open-source, powerful IoT development platform. |
Questi materiali supportano cavi personalizzati!
Scopri di più >>In Magazzino: 10
Minimo: 1Multipli: 1
Prezzo Unitario
$ 60.9000
Prezzo Tot.
$ 60.9000
Può essere spedito in 1-2 Giorni Lavorativi
Unità di Vendita: Busta Completa: 200
Miglior prezzo per quantità maggiori?
$
Consigliato Per Te
Specifiche
2768prodotti trovati.Mostra Simili| Tipo | Descrizione | Seleziona Tutto |
|---|---|---|
| Categoria | Moduli IoT/comunicazione ,Moduli di LoRa |
Descrizione

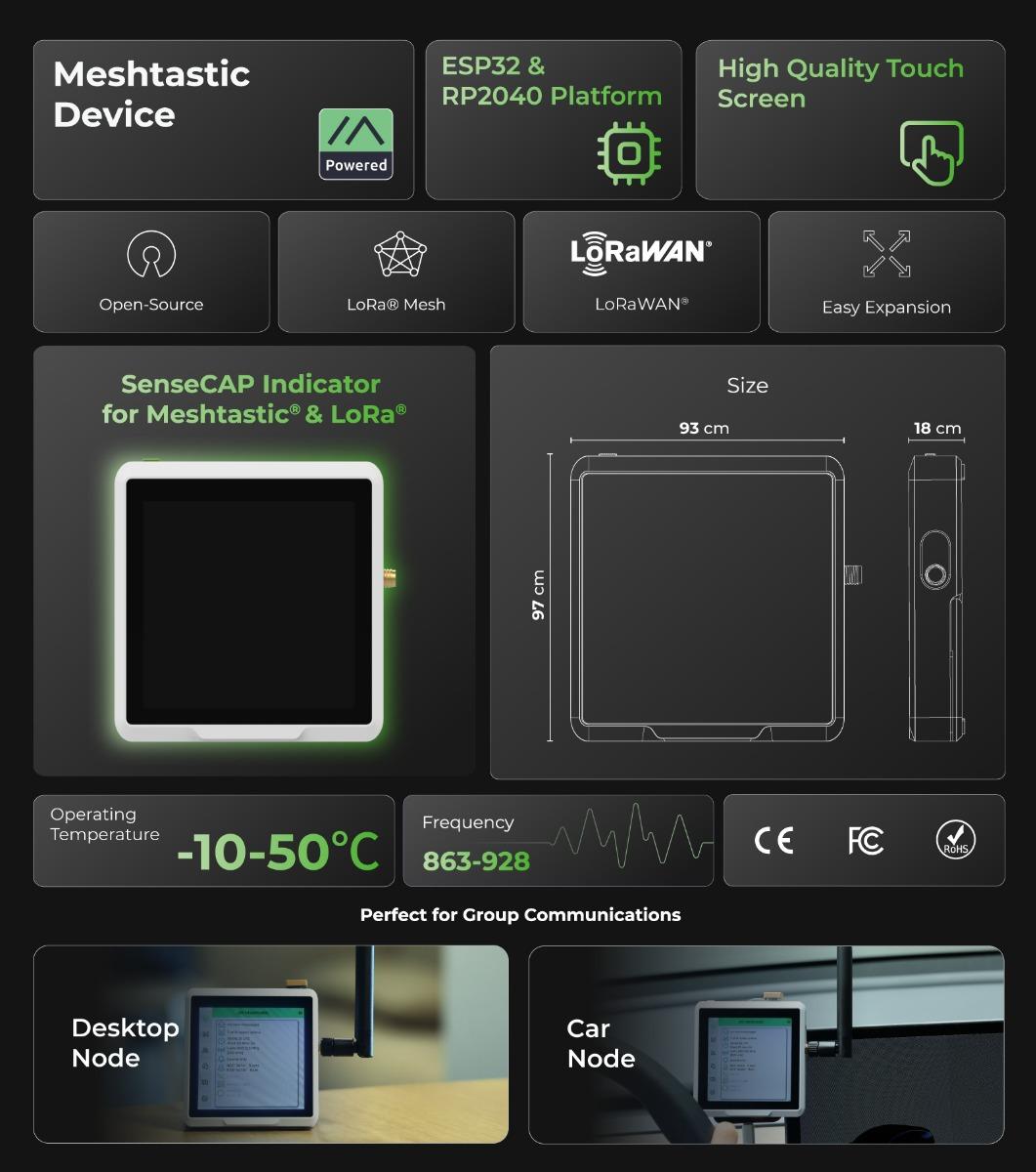

Feature
Note:
The device does not come with GPS. If you want to use GPS, please click the link to purchase it.
- Supports Meshtastic: Pre-flashed with Meshtastic firmware, it is ready to work once powered on. You can also upgrade the firmware using Meshtastic Flasher.
- Dual MCUs and Rich GPIOs: Equipped with powerful ESP32S3 and RP2040 dual MCUs and over 400 Grove-compatible GPIOs for flexible expansion options.
- Local LoRa® Hub for IoT Connectivity: Integrated with the Semtech SX1262 LoRa® chip, the device can be converted to a LoRaWAN® Single-Channel Gateway via tutorial. Alternatively, connect LoRa® devices to popular IoT platforms like Matter via Wi-Fi.
- Fully Open Source Platform: Leverage the extensive ESP32 and Raspberry Pi open-source ecosystem for infinite application possibilities.
- Suitable for Multiple Application Scenarios: Can be used as a Meshtastic desktop node or a car node, as well as a LoRaWAN® Single-Channel Gateway.
Specification
|
Screen |
3.95 Inch, Capacitive RGB Touch Screen |
|
Screen Resolution |
480 x 480 pixels |
|
Power Supply |
5V DC, 1A |
|
Battery |
N/A |
|
Processor |
ESP32-S3: Xtensa® dual-core 32-bit LX7 microprocessor, up to 240MHz RP2040: Dual ARM Cortex-M0+ up to 133MHz |
|
Flash |
ESP32S3: 8MB RP2040: 2MB |
|
External Storage |
Support up to 32GB Micro SD Card (not included) |
|
LoRa |
Supports 862-930MHz |
|
Wi-Fi |
802.11b/g/n, 2.4GHz |
|
Bluetooth |
Bluetooth 5.0 LE |
|
Certification |
CE /FCC |
|
Buzzer（Not developed yet） |
MLT-8530, Resonant Frequency：2700Hz |

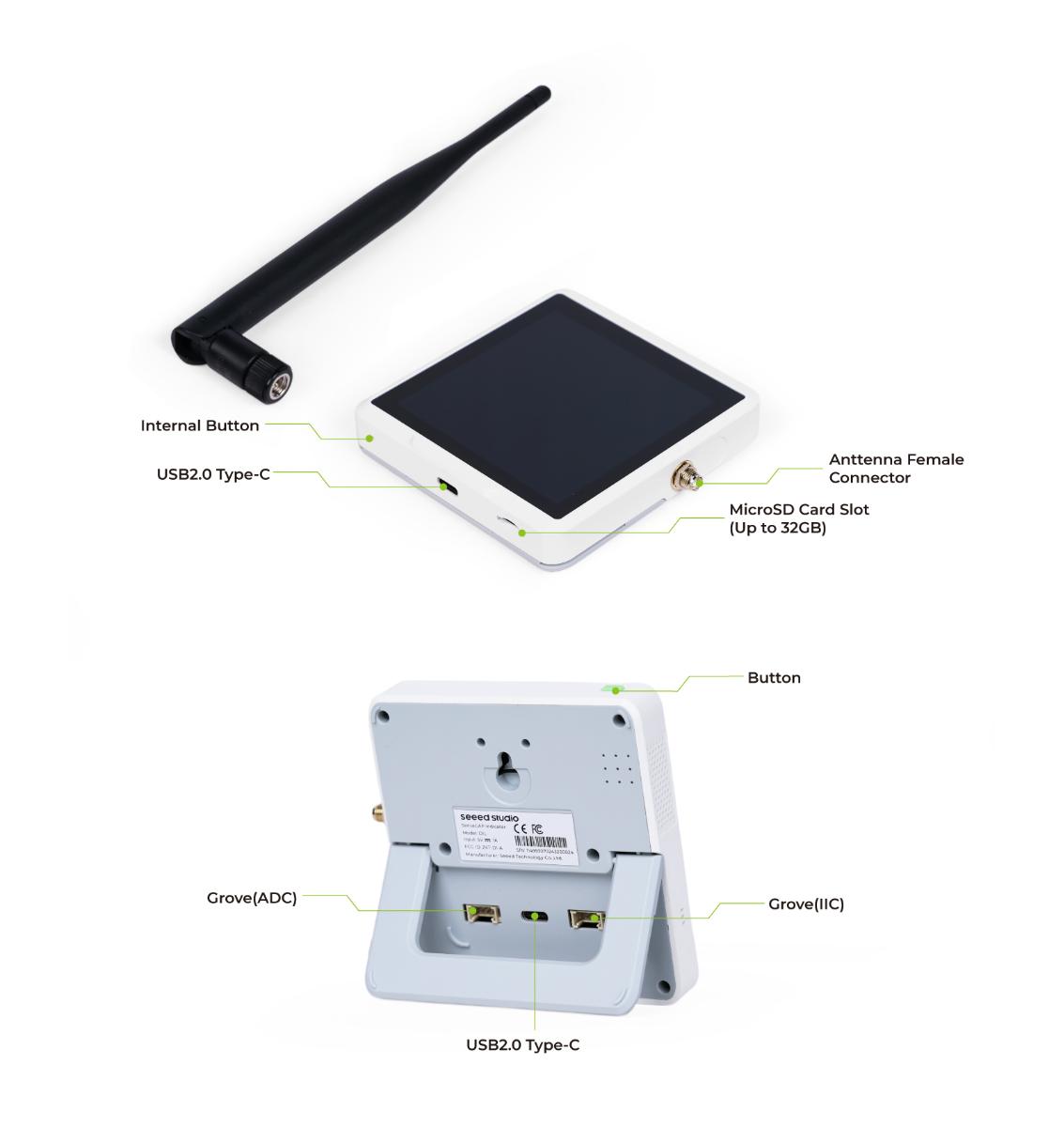

Hardware Overview
Application

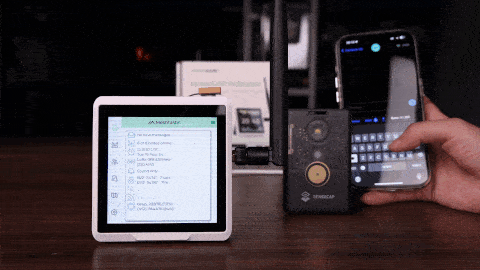

Meshtastic®
As a Meshtastic device, it can build an open-source, off-grid, decentralized, and free LoRa mesh network for reliable long-range, low-power communication with other Meshtastic® nodes. Pair it with your phone in three steps to start communicating with nearby nodes via the Meshtastic app, check signals, and share locations without any network infrastructure.

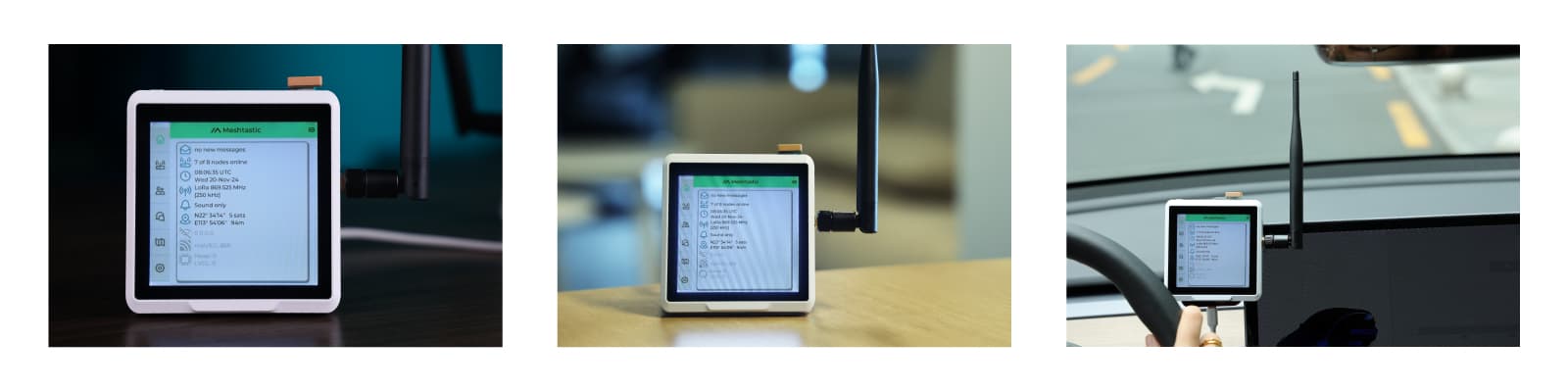

Recommended Use Cases

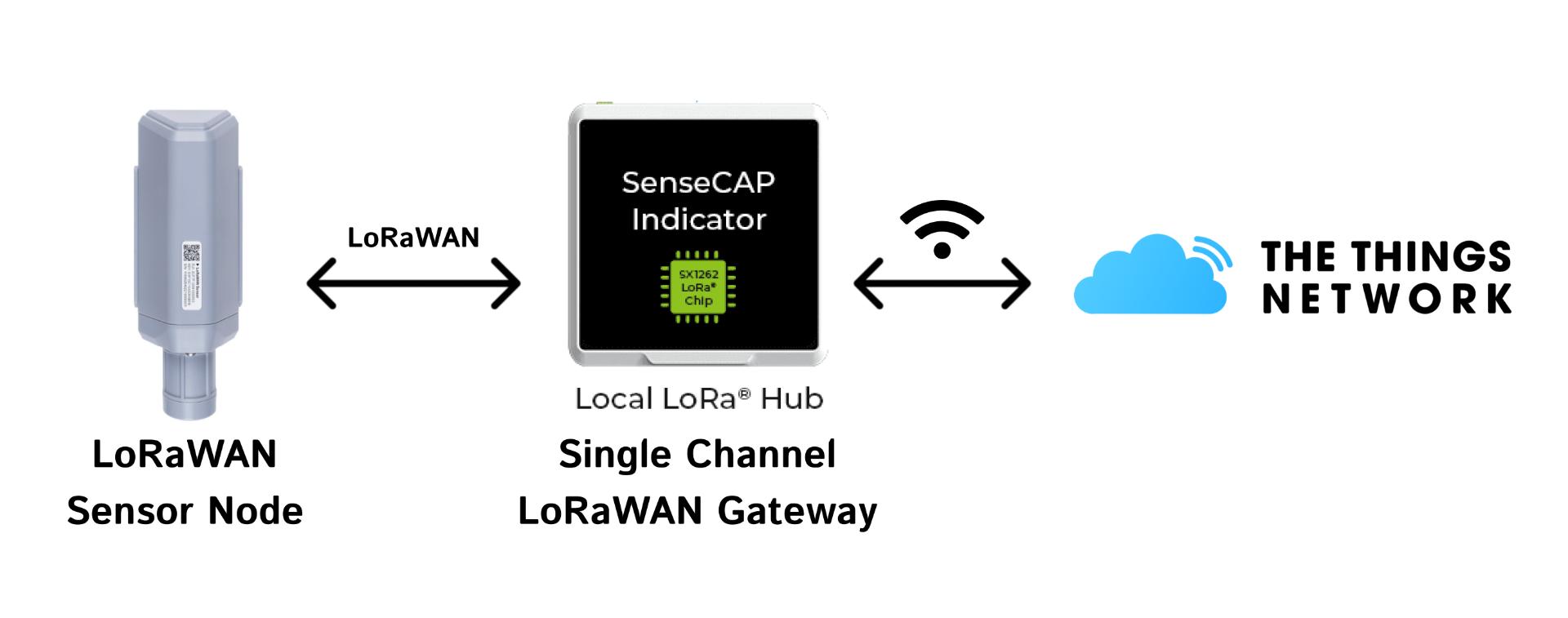

LoRa®
You can transform the device into a single-channel gateway by flashing the firmware, allowing it to receive and send data from LoRa terminal devices. This is a cost-effective option, especially suited for scenarios that require simple, low-power wireless communication.
ECCN/HTS
| HSCODE | 8543709990 |
| USHSCODE | 8531200020 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
Part List
|
Indicator |
x1 |
|
USB-C Cable(1M) |
x1 |
|
2dBi-868-915MHZ-SMA Antenna |
x1 |
