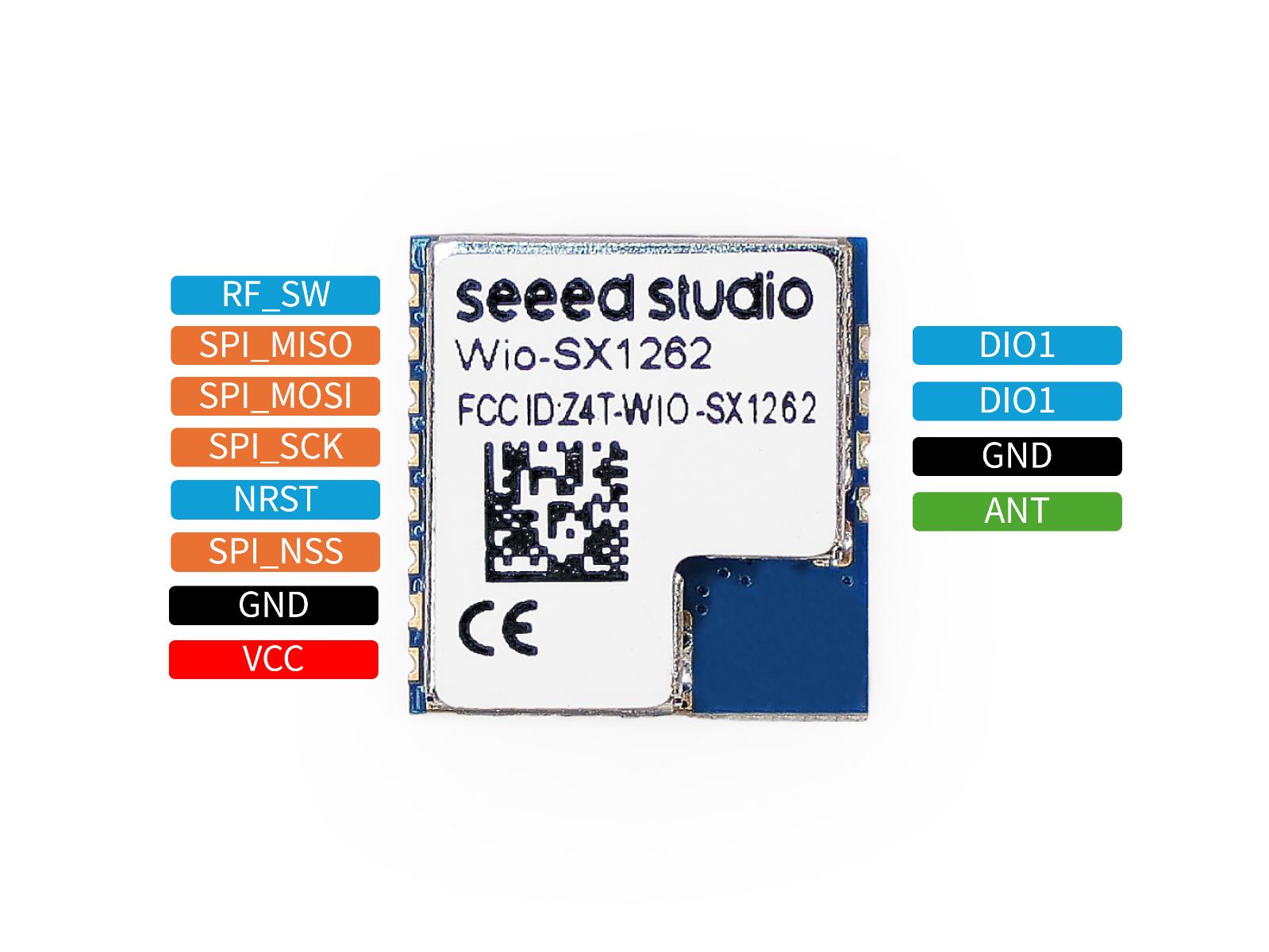

Wio-SX1262 Wireless Module without IPEX (Tape Reel), SX1262 embedded, supports LoRa&LoRaWAN on EU868 & US915

• High Performance: The transmit power up to 22dBm @868/930MHz; -136.73dBm sensitivity for SF12 with 125KHz BW.
• Wireless Connectivity: SPI interface, supports 862~930MHz global LoRa&LoRaWAN frequency plan.
• Small Size: 6mm X 11mm * 2.95mm @12 pins SMT.
• Low Power Consumption: 62uA sleep current .
• RF Interface: SMT Pin.
• FCC ID, CE, RoHS, TELEC Certified

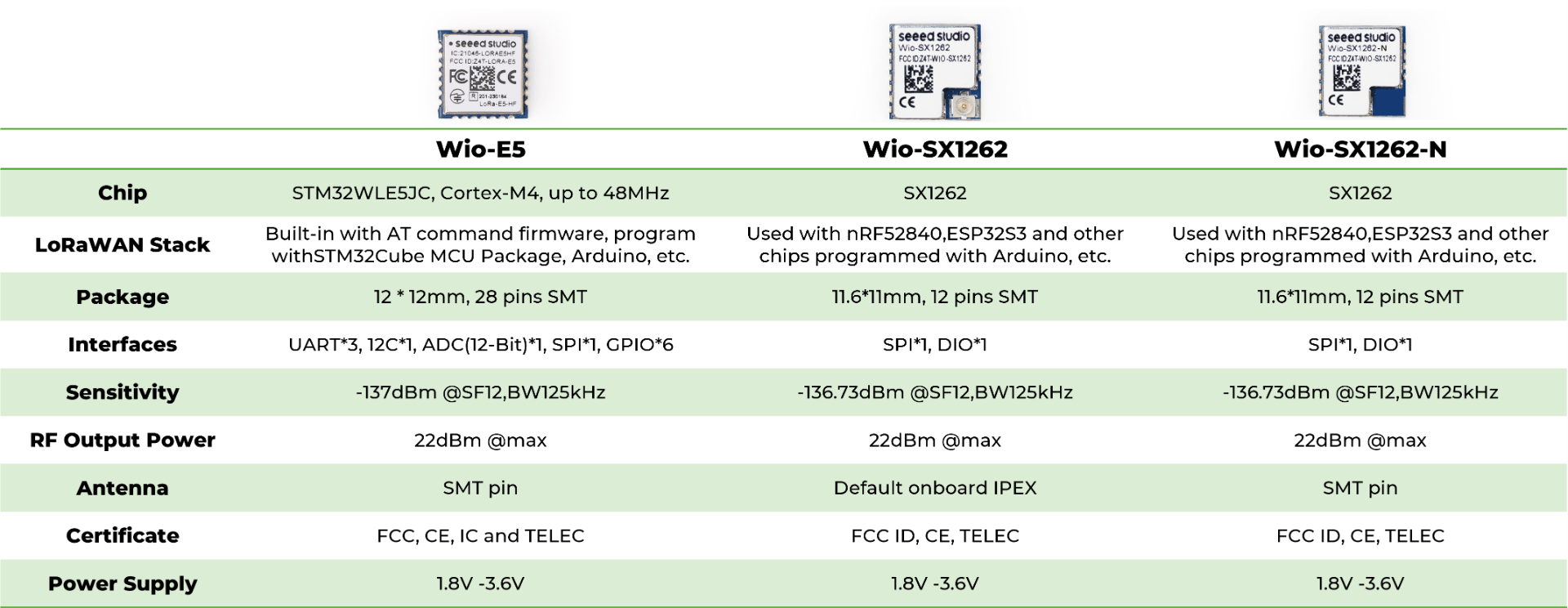

The Wio-SX1262 and Wio-E5 are both perfect choices for designing LoRa devices. Their main differences lie in whether you have a host MCU:

• If you already have an MCU, such as an nRF52840 or ESP32, and you just need to add LoRa functionality, you can choose the Wio-SX1262.
• the Wio-SX1262 series now includes the Wio-SX1262-N , which does not have an IPEX connector but instead uses SMT packaging to route the antenna from the PIN pins to an onboard antenna.
• If you need a single MCU to complete your design, then the Wio-E5 is an excellent choice.

ODM & OEM

With over 10 years of ODM & OEM experience, our engineers and product experts are proficient in delivering customization and manufacturing services for hardware products. We are committed to assisting you at any moment and shortening your path from idea to product for emerging AIoT scenarios.

If you want to design in our Wio-E5/Wio-SX1262 Module, we provide a one-stop ODM and OEM service for quick customization and scale-up. Please contact [email protected] if you have a large quantity customization need.

30% off Wio-E5/Wio-SX1262/Wio-LR1121/Wio-WM1110 Project Sponsorship with Seeed Fusion PCBA

If you have an interesting concept for any of Wio-E5/Wio-SX1262/Wio-LR1121/Wio-WM1110 and are willing to share it, we can help you make it a reality with Seeed Fusion’s one-stop-shop capabilities. Through our Fusion PCBA Sponsorship program, you can not only enjoy the lowest unit prices for Wio-E5/Wio-SX1262/Wio-LR1121/Wio-WM1110 modules from our Fusion Open Parts Library, but also fabricate and scale your PCBA designs at low cost (30% off) with FREE Design for Manufacturing consulting services, streamlining your journey from prototype to production. For more information, please click here.

The Wio-SX1262 and Wio-E5 can be used for the same applications, with the primary differences being the device control solutions and cost options. Thus, past cases involving the Wio-E5 can serve as useful references.

• Solar-Powered Outdoor Air Quality Monitor transmits data over LoRaWAN with the help of Seeed Fusion
• Low-Power Snow Depth Sensor Monitoring for IoT Smart City Based On Wio-E5 Applied in Norway
• Former Ph.D Researcher At OSU Developed Stream Runoff Monitoring Sensors Using Wio-E5 to Measure The Temperature, Quality and Flow
• Monitoring Indoor Air Pollutants – The Silent Issue for Smart City IoT using Seeed Wio-E5 and Fusion PCB
• Voice Needed! Ready for a Wio-E5 &038; ESP32 Powered WiLoBlIno Device?
