DG126-5.0-03P-14-00A(H)
| Fabricante | |
| Código de Pieza del Fabricante | DG126-5.0-03P-14-00A(H) |
| Código de Pieza EBEE | 12371211-DG126-5.0-03P-14-00A(H)-EB |
| Número de Cliente | |
| Hoja de Datos | |
| Modelos EDA | |

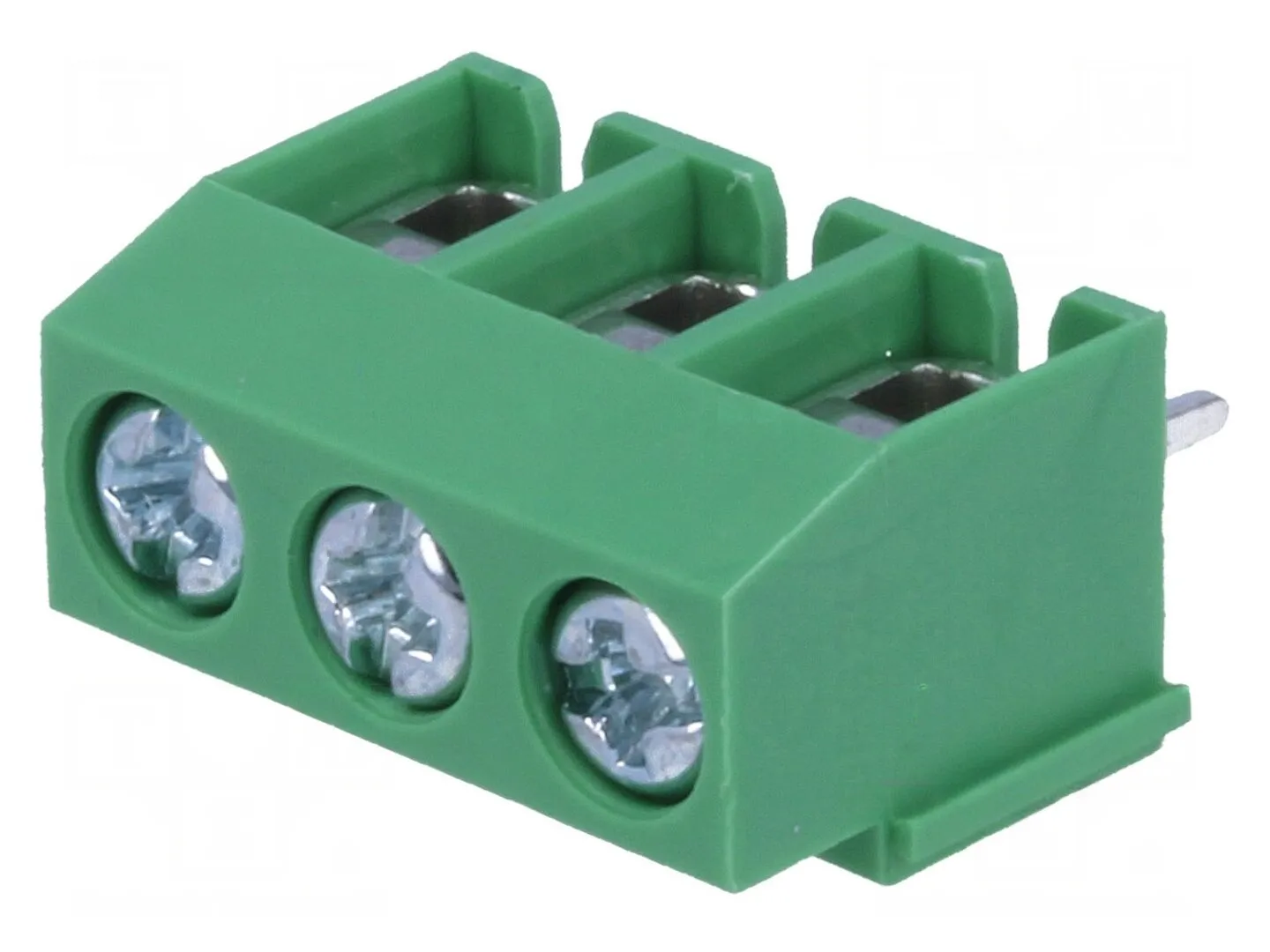

| Descripción | Connector: PCB terminal block; terminal; 18A; 250V; angled; tinned |
¡Estos materiales soportan cables personalizados!
Saber más >>15842 En Stock para Envío Rápido
15842 disponible para envío inmediatoPuede Enviarse en 1-2 Días Hábiles
Unidad de Venta: pcsBolsa Completa: 200
| Cant. | Precio Unitario | Precio Ext. |
|---|---|---|
| 5+ | $0.3330 | $ 1.6650 |
| 20+ | $0.2860 | $ 5.7200 |
| 100+ | $0.2380 | $ 23.8000 |
| 600+ | $0.1900 | $ 114.0000 |
| 1800+ | $0.1720 | $ 309.6000 |
¿Mejor precio para mayor cantidad?
$
Recomendado Para Ti
Especificaciones
2768productos encontrados.Mostrar Similares| Tipo | Descripción | Seleccionar Todo |
|---|---|---|
| Categoría | Connectors ,Terminals | |
| Hoja de Datos | DEGSON DG126-5.0-03P-14-00A(H) | |
| Operating temperature | -40...105°C | |
| Rated voltage | 250V | |
| Conform to the norm | CE | |
| Conform to the norm | UL | |
| Conform to the norm | VDE | |
| Type of connector | PCB terminal block | |
| Connector | terminal | |
| Spatial orientation | angled | |
| Electrical mounting | screw terminal | |
| Electrical mounting | THT | |
| Contacts pitch | 5mm | |
| Connector pinout layout | 1x3 | |
| Contact plating | tinned | |
| Mechanical mounting | on PCBs | |
| Current rating | 18A | |
| Colour | green | |
| Connector variant | with wire protector | |
| Body material | polyamide 66 | |
| Flammability rating | UL94V-0 | |
| Height | 10.2mm | |
| Contact material | brass | |
| Wire cross-section | 0.5...2.5mm<sup>2</sup> | |
| Number of ways | 3 | |
| Length | 15mm | |
| Wire size | 26AWG...14AWG | |
| Depth | 7.8mm | |
| Connectors features | assembling possibility |
Descripción
Connector: PCB terminal block; terminal; 18A; 250V; angled; tinned
